2017 Yamaha Wolverine 4x4 Side Cover 2 OEM Parts Diagram

Submodel WOLVERINE HUNTER - YXE70WDBHH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER 2

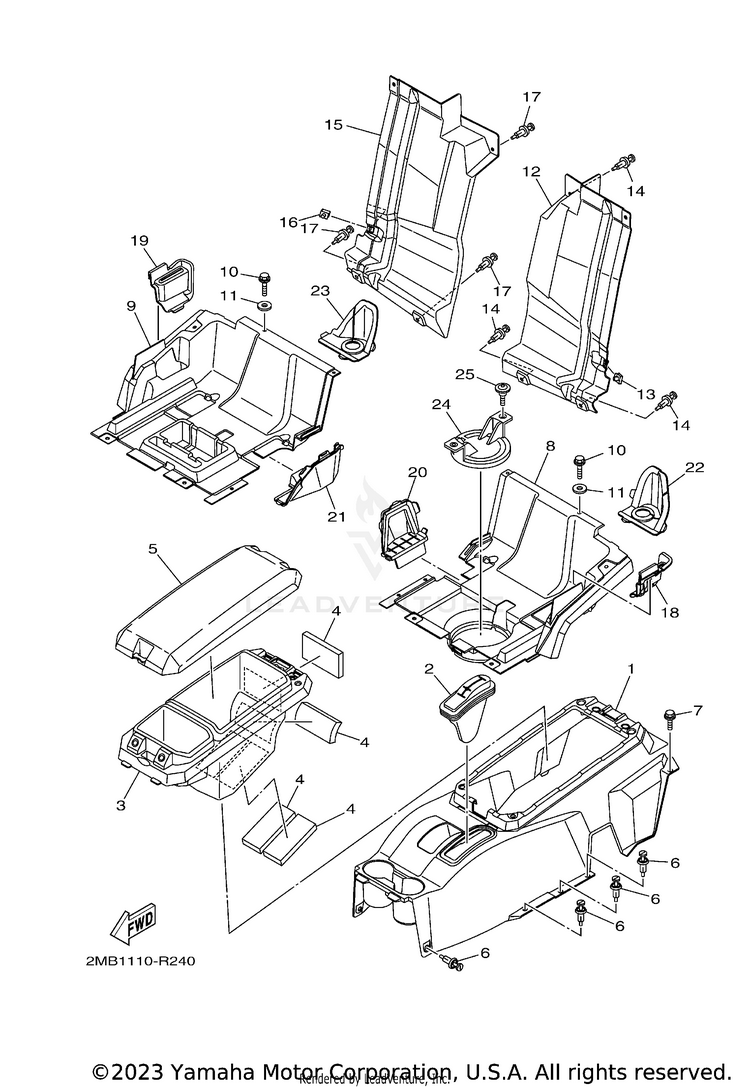

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-F8219-00-00COVER 1$50.99$39.77Usually ships in 7-10 business days
21XD-F6372-00-00COVER, HANDLE LEVER 1$9.49$8.54Usually ships in 7-10 business days
32MB-F1653-00-00BOX$31.99$26.23Usually ships in 7-10 business days
4JR4-7826L-00-00

(replaces part #
JR4-7825N-00-00)

PAD, BODY PROTECT 8$7.64$6.88Usually ships in 7-10 business days
52MB-F177J-00-00LID 2$17.49$14.34Usually ships in 7-10 business days
690269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
790119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
82MB-F84A3-00-00PLATE, UNDER 1$32.99$27.05Usually ships in 7-10 business days
92MB-F84A4-00-00PLATE, UNDER 2$35.99$29.51Usually ships in 7-10 business days
1090105-06833-00BOLT, FLANGE$2.30$1.983 In-Stock
1190201-06036-00WASHER, PLATE$9.49$7.404 In-Stock
122MB-F2327-00-00MUD GUARD 1$95.99$74.87Usually ships in 7-10 business days
1390183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1490269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
152MB-F2328-00-00MUD GUARD 2$27.99$22.95Usually ships in 7-10 business days
1690183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1790269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
182MB-F8483-00-00PLATE, RUBBER 1$9.99$8.99Usually ships in 7-10 business days
192MB-F8484-00-00PLATE, RUBBER 2$9.99$8.99Usually ships in 7-10 business days
202MB-F8485-00-00PLATE, RUBBER 3$11.49$9.42Usually ships in 7-10 business days
212MB-F8499-00-00PLATE, RUBBER 4$16.49$13.52Usually ships in 7-10 business days
222MB-F845J-00-00PLATE, RUBBER 5$10.99$9.01Usually ships in 7-10 business days
232MB-F846J-00-00PLATE, RUBBER 6$10.49$8.60Usually ships in 7-10 business days
242MB-F847J-00-00PLATE, RUBBER 7$14.99$12.29Usually ships in 7-10 business days
2590109-068A5-00BOLT$8.49$6.6210+ In-Stock
