2017 Yamaha Wolverine 4x4 Front Suspension Wheel OEM Parts Diagram

Submodel WOLVERINE EPS - YXE70WPBHG - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION WHEEL

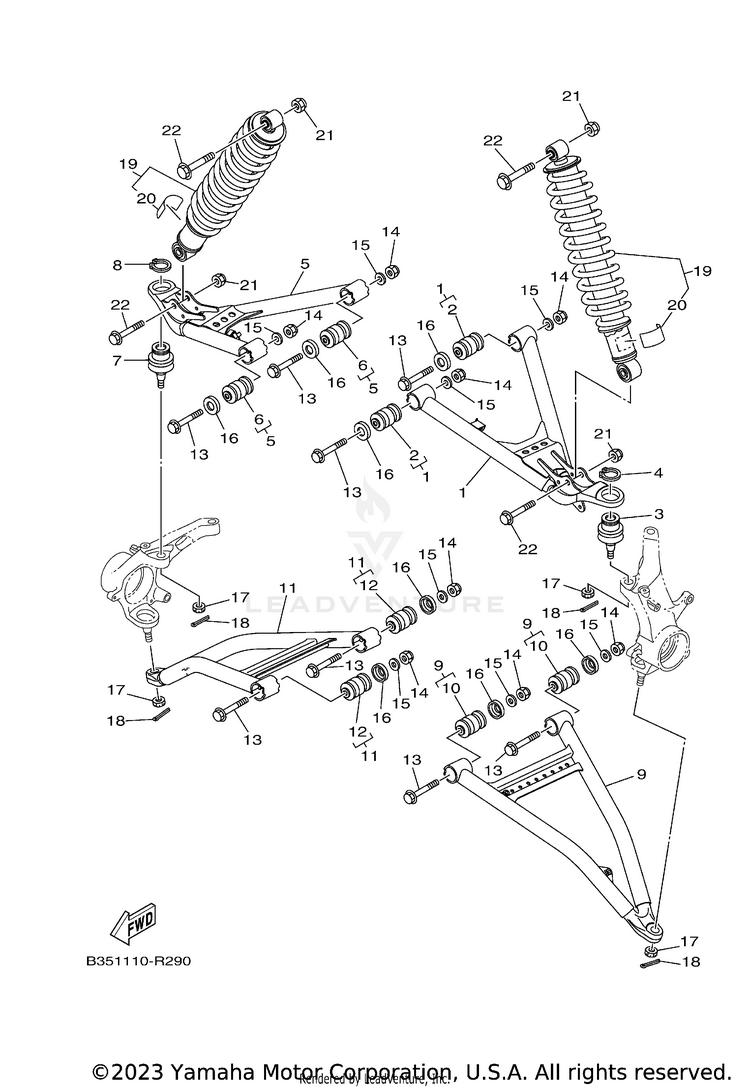

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F3540-02-00

(replaces part #
1XD-F3540-00-00)

FRONT UPPER ARM CO$95.99$74.871 In-Stock
21HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
31XD-23579-00-00BALL JOINT 2$83.99$65.519 In-Stock
AFTERMARKET ALTERNATIVE
$55.33$52.567 In-Stock
493410-32075-00

(replaces part #
99009-32400-00)

CIRCLIP$10.49$8.1810+ In-Stock
51XD-F3550-02-00

(replaces part #
1XD-F3550-00-00)

FRONT UPPER ARM CO$95.99$74.87Usually ships in 7-10 business days
61HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
71XD-23579-00-00BALL JOINT 2$83.99$65.519 In-Stock
AFTERMARKET ALTERNATIVE
$55.33$52.567 In-Stock
893410-32075-00

(replaces part #
99009-32400-00)

CIRCLIP$10.49$8.1810+ In-Stock
92MB-F3570-00-00FRONT LOWER ARM COMP. (LEFT)$96.99$75.65Usually ships in 7-10 business days
101HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
112MB-F3580-00-00FRONT LOWER ARM COMP. (RIGHT)$95.99$74.87Usually ships in 7-10 business days
121HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
1390105-10267-00BOLT, FLANGE$10.49$8.188 In-Stock
1490185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
1590201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
165KM-22149-10-00WASHER$8.49$6.6210+ In-Stock
1790171-12001-00NUT, CASTLE$3.55$3.0510+ In-Stock
1891490-25020-00

(replaces part #
91402-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
19B35-F3390-00-00SHOCK ABSORBER ASSY 2$250.99$195.77Usually ships in 7-10 business days
201HP-F2259-01-00LABEL, WARNING$23.99$19.67Usually ships in 7-10 business days
2190185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
2290105-10283-00BOLT, FLANGE$6.49$5.066 In-Stock
