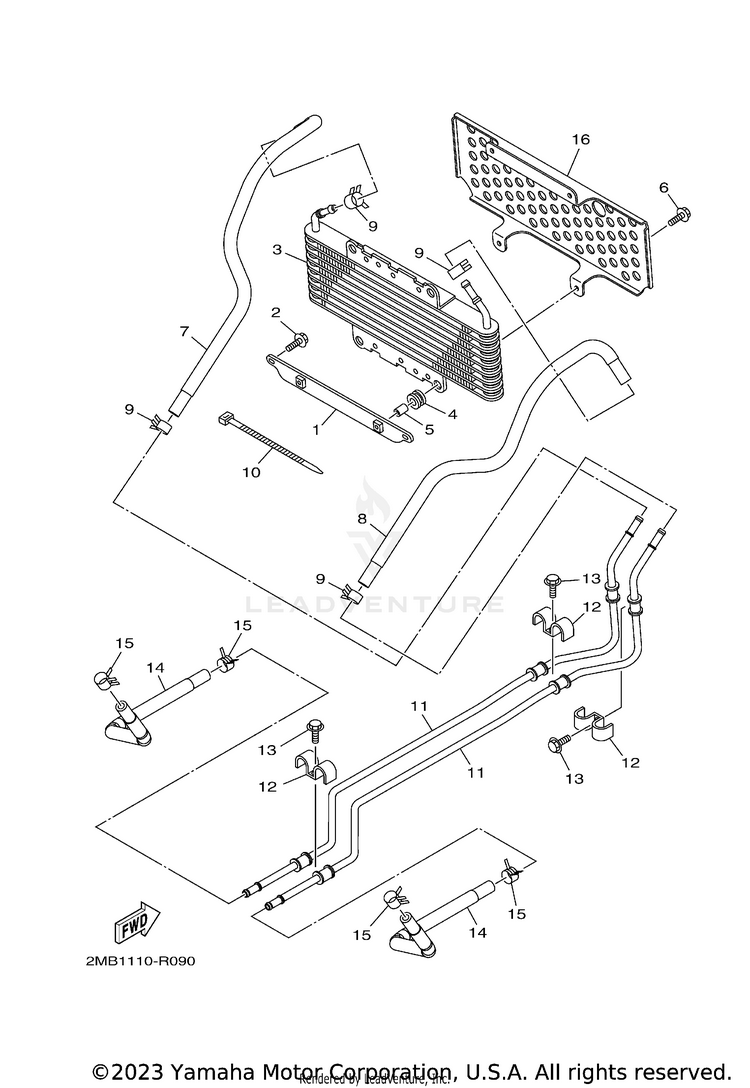

2017 Yamaha Wolverine 4x4 Oil Pipe OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2MB-F1498-00-00	BRACKET, OIL COOLER	$4.95	$4.46	Usually ships in 7-10 business days
2	JW1-K6179-01-00 (replaces part # 90119-06868-00)	BOLT, SPECIAL 1	$1.75	$1.50	10+ In-Stock
3	1NS-E3480-00-00	ELEMENT, OIL COOLER	$371.99	$290.15	Usually ships in 7-10 business days
4	90480-12475-00 (replaces part # 90480-15235-00)	GROMMET	$9.49	$7.40	10+ In-Stock
5	90387-06113-00	COLLAR	$12.49	$9.74	7 In-Stock
6	95817-06025-00 (replaces part # 95812-06025-00)	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
7	2MB-E243A-01-00	HOSE 1	$25.99	$21.31	Usually ships in 7-10 business days
8	2MB-E2577-01-00	HOSE 2	$24.99	$20.49	Usually ships in 7-10 business days
9	90467-150A0-00	CLIP	$4.49	$4.04	Usually ships in 7-10 business days
10	90464-48800-00	CLAMP	$4.90	$4.41	Not Shipping
11	2MB-E3405-01-00	OIL PIPE COMP. 1	$34.99	$28.69	Usually ships in 7-10 business days
12	90462-15800-00	CLAMP	$4.75	$4.28	Usually ships in 7-10 business days
13	90105-06832-00	BOLT, FLANGE	-	$1.36	10+ In-Stock
14	2MB-E2551-01-00	HOSE 7	$23.99	$19.67	Usually ships in 7-10 business days
15	90467-150A0-00	CLIP	$4.49	$4.04	Usually ships in 7-10 business days
16	2MB-E3691-00-00	BRACKET, AIR COOLER	$41.99	$34.43	Usually ships in 7-10 business days
