2017 Yamaha Wolverine 4x4 Stand Footrest OEM Parts Diagram

Submodel WOLVERINE EPS - YXE70WPBHG - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

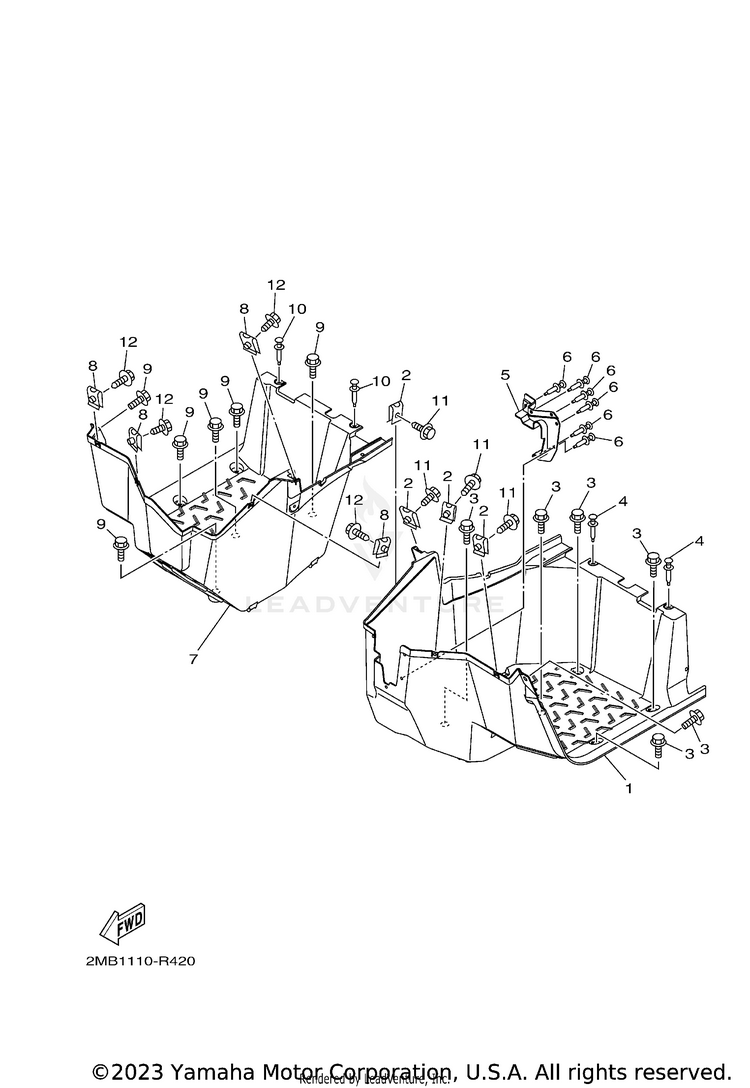

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-F7411-01-00

(replaces part #
2MB-F7411-00-00)

FOOTREST 1$212.99$166.13Usually ships in 7-10 business days
290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
3JW1-K6179-01-00BOLT, SPECIAL 1$1.75$1.5010+ In-Stock
490269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
51XD-F7286-00-00COVER, DUST$8.49$7.64Usually ships in 7-10 business days
690269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
72MB-F7421-01-00

(replaces part #
2MB-F7421-00-00)

FOOTREST 2$212.99$166.13Usually ships in 7-10 business days
890183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
9JW1-K6179-01-00BOLT, SPECIAL 1$1.75$1.5010+ In-Stock
1090269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
1190119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1290119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
