2017 Yamaha XSR900 Meter OEM Parts Diagram

Submodel XSR900 CA - XSR900HCL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

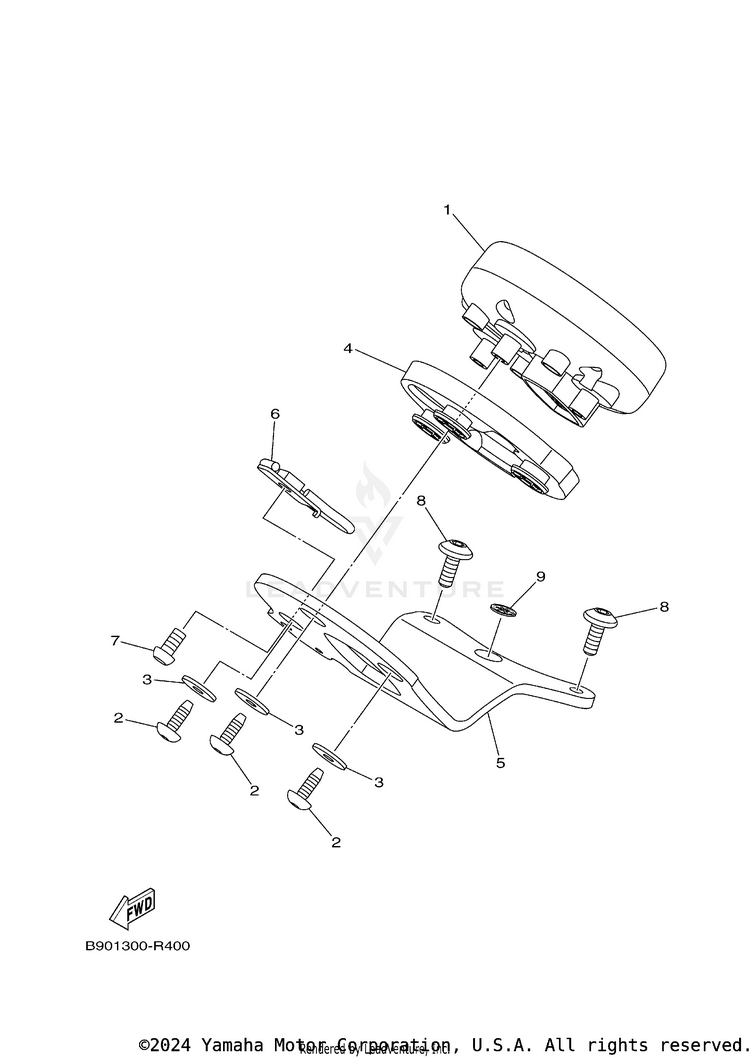

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B90-83500-20-00METER ASSY$982.99$796.68Usually ships in 7-10 business days
290160-05017-00SCREW, ROUND TAPPING$2.65$2.38Usually ships in 7-10 business days
390201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
4B90-83513-00-00DAMPER$15.49$12.70Usually ships in 7-10 business days
5B90-8355X-00-00BRACKET, METER 1$158.99$124.01Usually ships in 7-10 business days
6B90-83599-00-00GUIDE, WIRE$20.99$17.21Usually ships in 7-10 business days
792017-06012-00BOLT, BUTTON HEAD-$3.584 In-Stock
890111-06038-00BOLT, HEX. SOCKET BUTTON$4.65$4.0010+ In-Stock
914B-2836B-00-00TUNING FORK MARK$11.99$9.83Usually ships in 7-10 business days
