2017 Yamaha XSR900 Oil Cleaner OEM Parts Diagram

Submodel XSR900 CA - XSR900HCL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL CLEANER

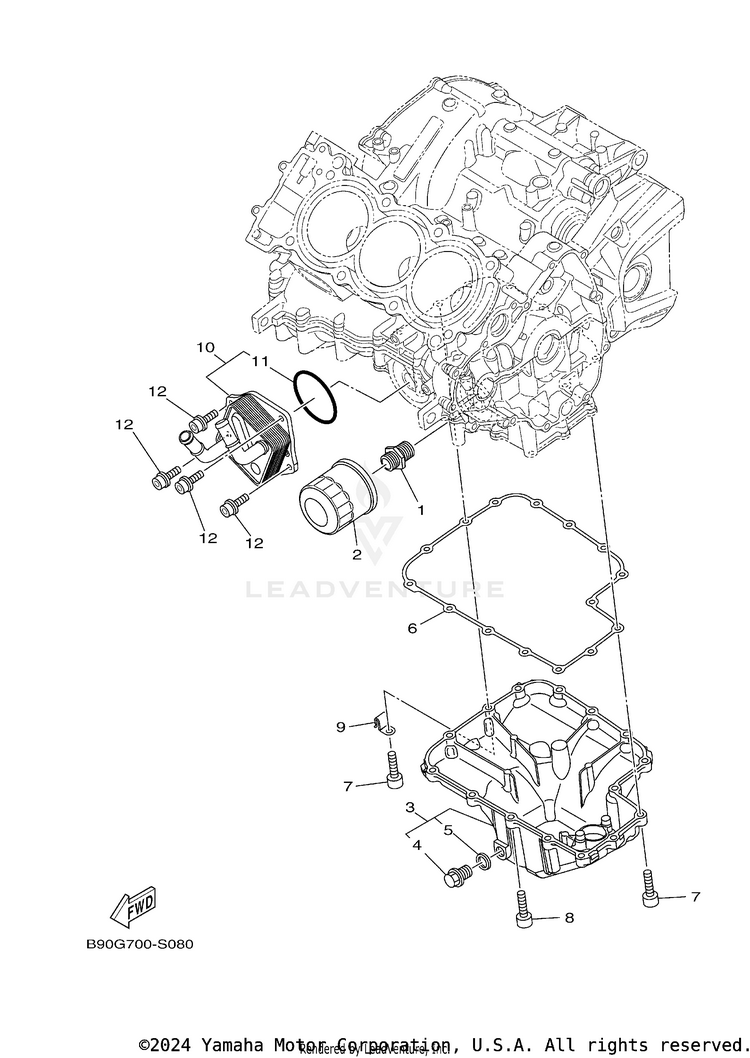

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190401-20008-00BOLT, UNION$25.99$21.31Usually ships in 7-10 business days
25GH-13440-90-00

(replaces part #
5GH-13440-60-00)

ELEMENT ASSY, OIL CLEANER$16.49$12.8610+ In-Stock
3B56-13400-10-00STRAINER COVER ASSY$289.99$226.191 In-Stock
490340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
5214-11198-01-00GASKET$3.17$2.8910+ In-Stock
6BD5-13414-00-00

(replaces part #
1RC-13414-00-00)

GASKET, STRAINER COV$31.99$24.954 In-Stock
791317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
891317-06025-00

(replaces part #
90110-06169-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
990465-06025-00CLAMP$5.00$4.50Usually ships in 7-10 business days
10BS2-13470-10-00

(replaces part #
BS2-13470-00-00)

OIL COOLER ASSY$188.99$147.41Usually ships in 7-10 business days
112HC-13473-00-00O-RING$8.49$6.624 In-Stock
1290110-06163-00

(replaces part #
90110-06164-00)

BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
