2018 Yamaha Bolt R-Spec Front Master Cylinder OEM Parts Diagram

Submodel BOLT R SPEC CA - XVS95CJCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

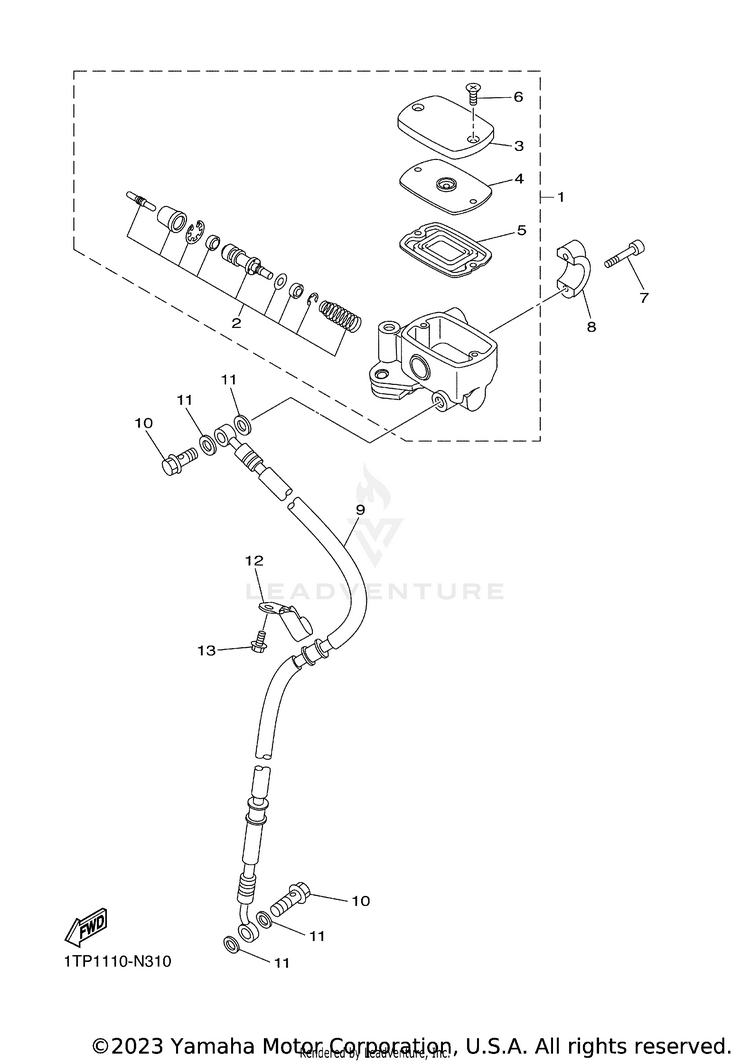

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-2580A-00-00MASTER CYLINDER SUB ASSY 2$218.99$170.81Usually ships in 7-10 business days
21TP-25807-00-00CYLINDER KIT, MASTER$34.99$28.69Usually ships in 7-10 business days
34B5-25852-00-00CAP, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
44B5-25855-00-00BUSH, DIAPHRAGM$7.49$6.74Usually ships in 7-10 business days
54B5-25854-00-00DIAPHRAGM, RESERVOIR$21.99$18.03Usually ships in 7-10 business days
65VS-2589H-00-00SCREW$4.45$3.834 In-Stock
75VS-26332-00-00BOLT$4.95$4.264 In-Stock
83D8-25867-00-00BRACKET, MASTER CYLINDER$30.99$25.41Usually ships in 7-10 business days
91TP-25872-00-00HOSE, BRAKE 1$92.99$72.53Usually ships in 7-10 business days
1090401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1190430-10005-00GASKET$9.49$7.4010+ In-Stock
121TP-25886-00-00HOLDER, BRAKE HOSE$16.49$13.52Usually ships in 7-10 business days
1395027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
