2018 Yamaha Bolt R-Spec Taillight OEM Parts Diagram

Submodel BOLT R SPEC CA - XVS95CJCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

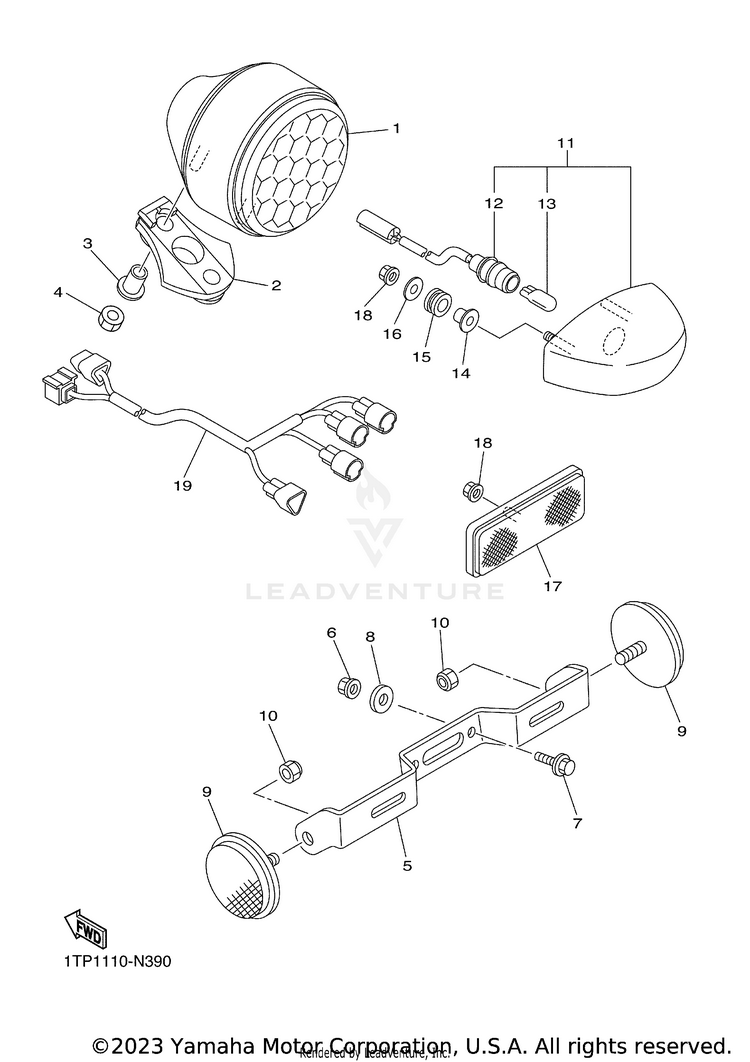

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-84700-00-00TAILLIGHT ASSY | UR FOR VPBC5$206.99$161.45Usually ships in 7-10 business days
11TP-84700-10-00TAILLIGHT ASSY | UR FOR BNS4$247.99$193.43Usually ships in 7-10 business days
21TP-84736-00-00DAMPER, TAIL 1$8.49$7.64Usually ships in 7-10 business days
390387-06161-00COLLAR$9.49$7.409 In-Stock
495380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
55S7-84751-01-00BRACKET, LICENSE$34.99$28.69Usually ships in 7-10 business days
695617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
795022-06014-00BOLT, FLANGE$3.40$2.928 In-Stock
890201-06380-00WASHER, PLATE-$0.7110+ In-Stock
9449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1095607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
111TP-84740-00-00LICENCE LIGHT ASSY$44.99$36.89Usually ships in 7-10 business days
121TP-84547-00-00CORD, LICENSE LIGHT$21.99$18.03Usually ships in 7-10 business days
131TP-84347-00-00BULB (12V-5W)$7.49$5.841 In-Stock
1490387-05003-00COLLAR$6.49$5.84Usually ships in 7-10 business days
1590480-11008-00GROMMET$6.49$5.84Usually ships in 7-10 business days
1690201-05556-00

(replaces part #
90201-054K4-00)

WASHER, PLATE$10.49$8.603 In-Stock
173Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1895702-05500-00NUT, WITH WASHER-$1.118 In-Stock
191TP-84717-01-00CORD, TAILLIGHT$82.99$64.73Usually ships in 7-10 business days
