2018 Yamaha Bolt R-Spec Starter OEM Parts Diagram

Submodel BOLT R SPEC CA - XVS95CJCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

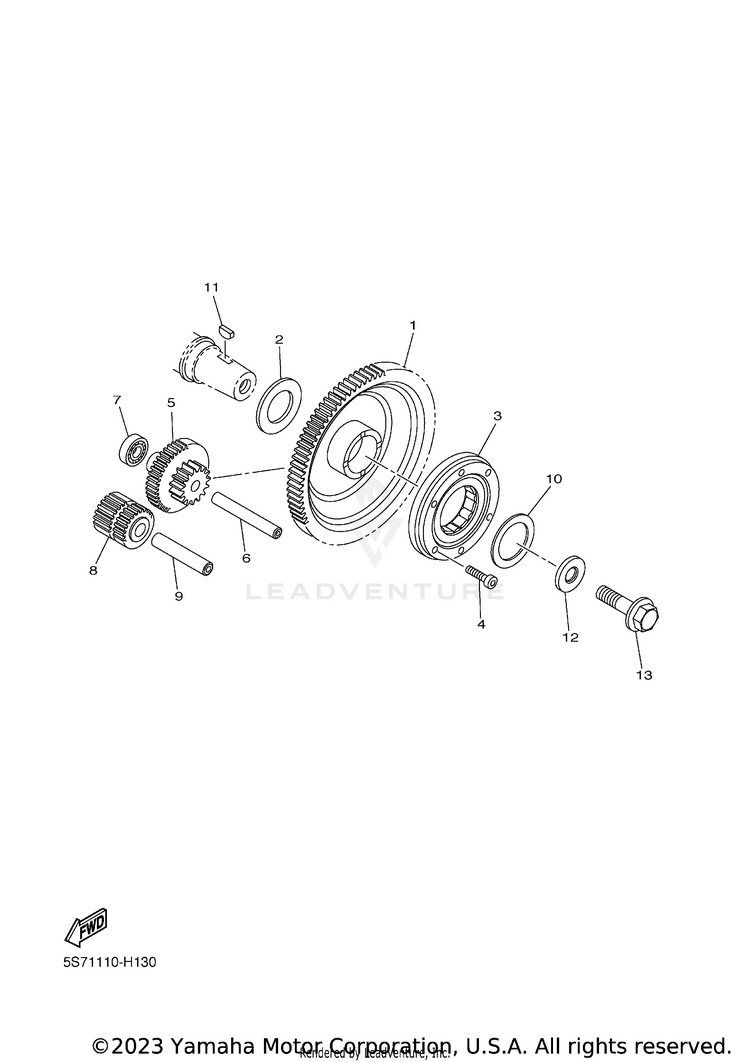

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-15515-00-00GEAR 3$141.99$112.37Usually ships in 7-10 business days
25S7-15561-00-00WASHER$13.49$11.06Usually ships in 7-10 business days
34NK-15590-00-00STARTER ONE-WAY ASSY$316.99$247.25Usually ships in 7-10 business days
491317-08025-00

(replaces part #
90110-08067-00)

BOLT$9.49$7.407 In-Stock
55S7-15512-01-00GEAR, IDLER 1$143.99$112.31Usually ships in 7-10 business days
61D7-15521-00-00SHAFT 1$9.49$8.54Usually ships in 7-10 business days
793306-00004-00

(replaces part #
93306-00006-00)

BEARING$41.99$32.7510+ In-Stock
83D8-15512-01-00GEAR, IDLER 1$74.99$58.49Usually ships in 7-10 business days
94WM-15522-00-00SHAFT 2$13.99$11.47Usually ships in 7-10 business days
1090201-350F3-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
1190280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
1290201-12008-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
1390105-12584-00BOLT, WASHER BASED$20.99$17.21Usually ships in 7-10 business days
