2018 Yamaha YZ65 Crankshaft Piston OEM Parts Diagram

Submodel YZ65 - YZ65J - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

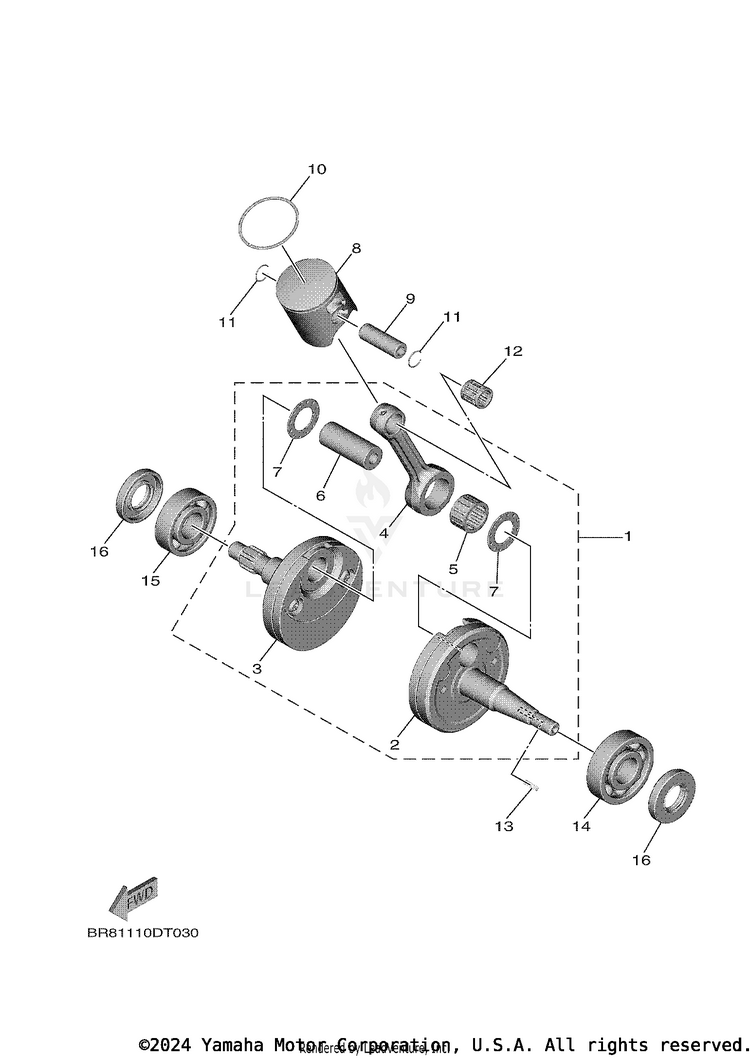

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BR8-11400-00-00CRANKSHAFT ASSY$366.99$286.2510+ In-Stock
2BR8-11410-00-00CRANKSHAFT$136.99$106.85Usually ships in 7-10 business days
3BR8-11420-00-00CRANKSHAFT$136.99$106.85Usually ships in 7-10 business days
4BR8-11651-00-00ROD, CONNECTING$52.99$41.33Usually ships in 7-10 business days
593310-418M6-00BEARING, CYLINDER.#10$79.99$62.392 In-Stock
6BR8-11681-00-00PIN, CRANK 1$26.99$22.132 In-Stock
790209-18112-00WASHER$11.49$8.9610+ In-Stock
8BR8-11631-01-B0PISTON (STD) | UR ORANGE$83.99$65.514 In-Stock
8BR8-11631-01-A0PISTON (STD) | UR RED$83.99$65.514 In-Stock
8BR8-11631-01-D0PISTON (STD) | UR PURPLE$83.99$65.518 In-Stock
8BR8-11631-01-C0PISTON (STD) | UR GREEN$83.99$65.513 In-Stock
9BR8-11633-00-00PIN, PISTON$10.49$8.1810+ In-Stock
10BR8-11611-01-00

(replaces part #
BR8-11611-00-00)

RING, PISTON$13.49$10.5210+ In-Stock
1193450-13130-00CIRCLIP$9.49$7.4010+ In-Stock
1293310-21283-00BEARING$16.49$12.8610+ In-Stock
1390280-03017-00

(replaces part #
90280-03045-00)

KEY, WOODRUFF$8.49$6.8310+ In-Stock
1493306-20468-00

(replaces part #
93306-20438-00)

BEARING$47.99$37.4310+ In-Stock
1593306-30421-00BEARING$71.99$56.1510+ In-Stock
1693102-20485-00OIL SEAL$23.99$18.7110+ In-Stock
