STEERING

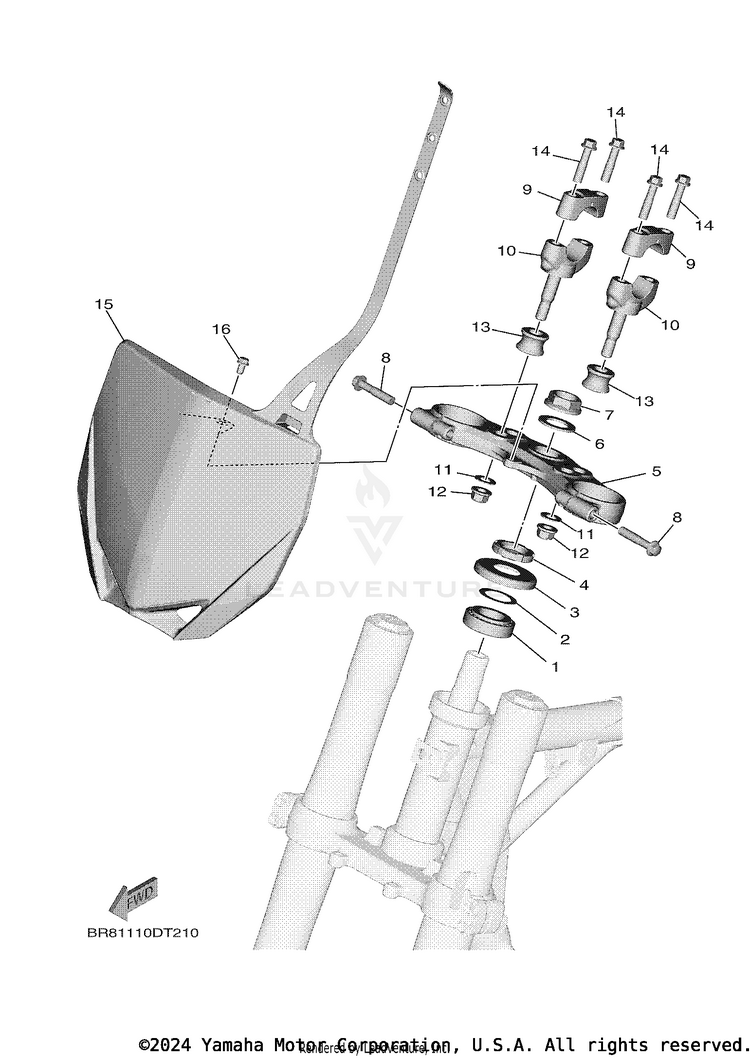

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00079-00BEARING$75.99$59.275 In-Stock
AFTERMARKET ALTERNATIVE
$43.00$35.9910+ In-Stock
290201-256K5-00WASHER, PLATE (0.5T)$16.49$12.865 In-Stock
31J7-23415-00-00COVER, BALL RACE 1$7.49$5.845 In-Stock
490179-25004-00NUT$26.99$21.055 In-Stock
5BR8-23435-00-00CROWN, HANDLE$140.99$109.97Usually ships in 7-10 business days
690201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
790179-22025-00NUT$22.99$17.9310+ In-Stock
895E32-08040-00BOLT, FLANGE DEEP RECESS$0.95$0.824 In-Stock
918P-23441-00-00HOLDER, HANDLE UPPER$33.99$26.516 In-Stock
10BR8-23442-00-00HOLDER, HANDLE LOWER$43.99$34.318 In-Stock
1190201-10045-00WASHER, PLATE$9.49$7.4010+ In-Stock
1295602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
13BR8-23113-00-00COLLAR$12.49$9.743 In-Stock
1490105-08154-00BOLT, FLANGE$8.49$6.6210+ In-Stock
151SN-23485-01-00PLATE, NUMBER$71.99$56.153 In-Stock
1690105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
