2018 Yamaha YZ65 Handle Switch Lever OEM Parts Diagram

Submodel YZ65 - YZ65J - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

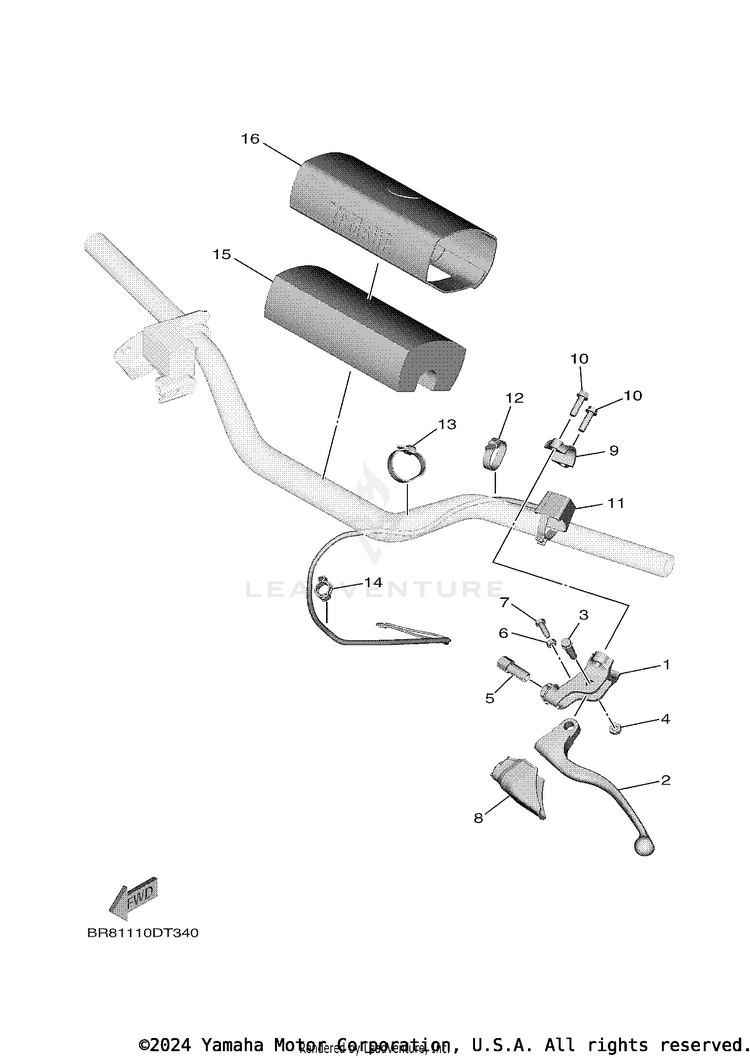

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117D-82911-00-00HOLDER, LEVER 1$41.99$32.7510+ In-Stock
21SS-83912-00-00LEVER 1$36.99$28.8510+ In-Stock
390109-06034-00BOLT$8.49$7.0110+ In-Stock
45LP-84126-10-00NUT, LENS FITTING$7.49$5.8410+ In-Stock
517D-26337-00-00BOLT, ADJUSTING$49.99$38.999 In-Stock
695380-05600-00

(replaces part #
95302-05600-00)

NUT$9.49$8.54Usually ships in 7-10 business days
790101-05005-00BOLT$3.30$2.848 In-Stock
834P-26372-00-00COVER, HANDLE LEVER 1$16.49$12.8610+ In-Stock
933D-82913-00-00HOLDER, LEVER LOWER 1$32.99$25.733 In-Stock
1095022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
11BR8-83976-01-00

(replaces part #
BR8-83976-00-00)

SWITCH, HANDLE 1$23.99$18.718 In-Stock
1290464-13077-00CLAMP | (95.0X7.0)$9.49$7.4010+ In-Stock
1390464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (125.0x7.0)$4.41$3.7910+ In-Stock
1490464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
155XC-26124-90-00PROTECTOR, HANDLEBAR$46.99$36.657 In-Stock
1617D-26143-H0-00COVER, HANDLE UPPER 1$74.99$58.495 In-Stock
