2019 Yamaha Niken GT Meter OEM Parts Diagram

Submodel NIKEN GT - MXT9GTKL - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

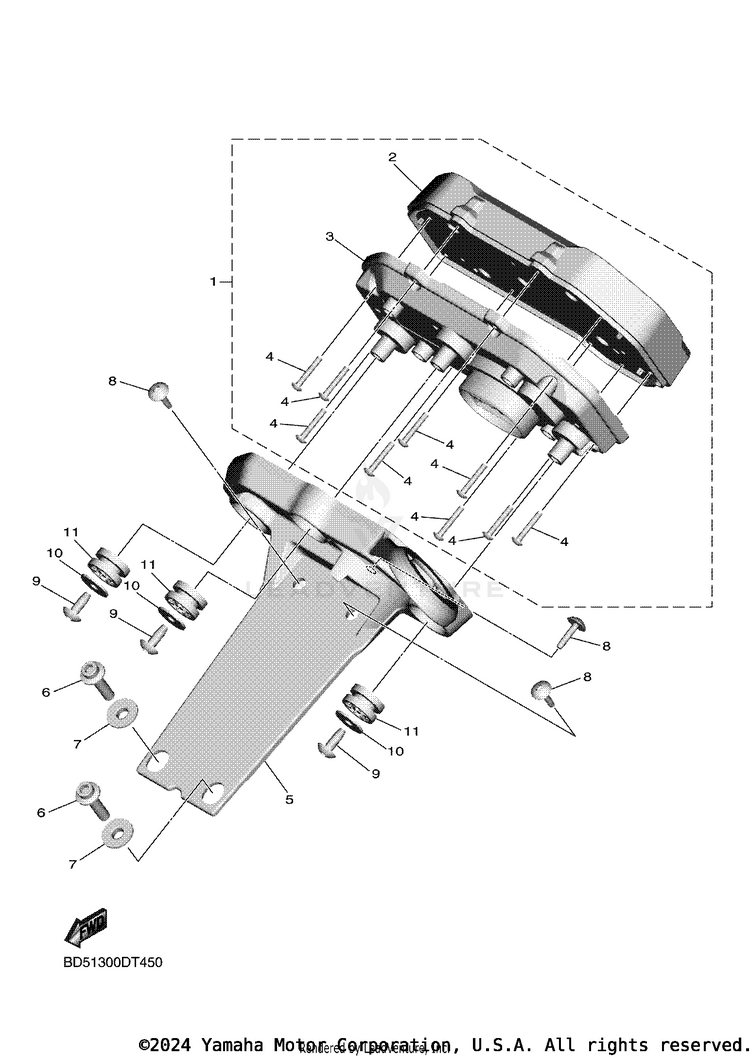

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD5-83500-21-00METER ASSY$646.99$541.68Usually ships in 7-10 business days
2BD5-8353E-21-00CASE, METER UPPER$99.99$77.99Usually ships in 7-10 business days
3BD5-8353H-00-00CASE, UNDER$41.99$34.43Usually ships in 7-10 business days
490164-03024-00SCREW, TAPPING$1.65$1.489 In-Stock
5BD5-8355X-00-00BRACKET, METER 1$41.99$34.43Usually ships in 7-10 business days
690109-06015-00BOLT$5.49$4.2810+ In-Stock
790387-06200-00COLLAR$8.49$7.64Usually ships in 7-10 business days
890167-05080-00SCREW, TAPPING$2.70$2.325 In-Stock
990160-05017-00SCREW, ROUND TAPPING$2.65$2.38Usually ships in 7-10 business days
1090201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
114XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
