2019 Yamaha Niken GT Shift Shaft OEM Parts Diagram

Submodel NIKEN GT - MXT9GTKL - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

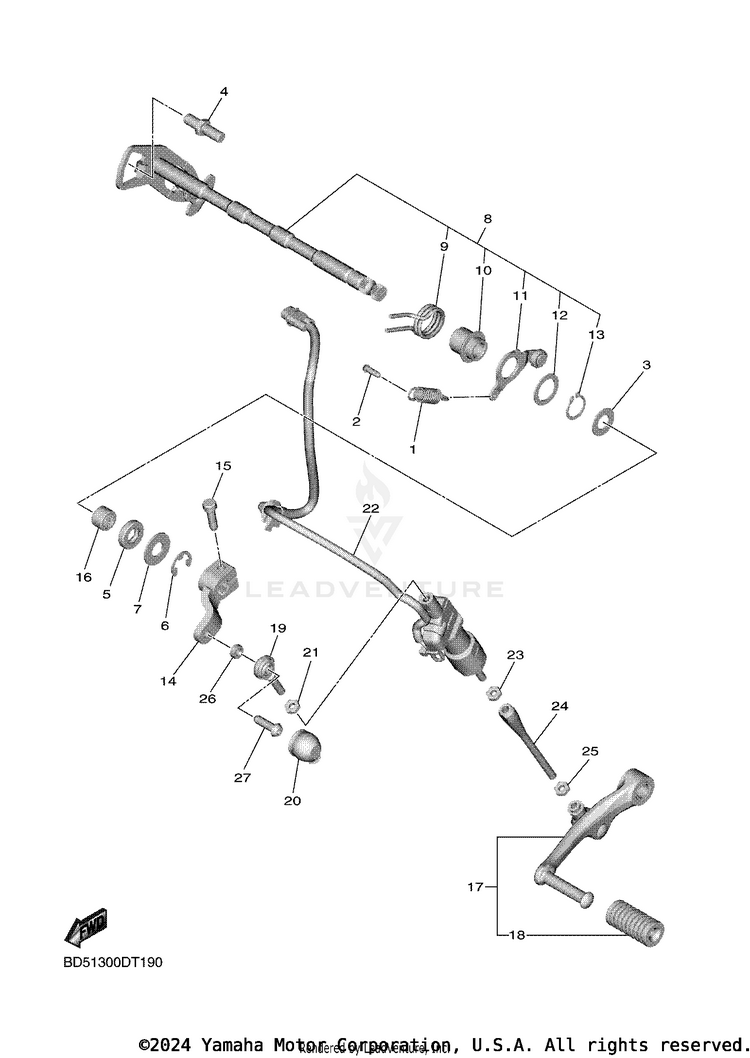

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190506-18021-00SPRING, TENSION$9.49$8.54Usually ships in 7-10 business days
2132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
390201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
45VK-18127-00-00

(replaces part #
1D7-18127-00-00)

STOPPER, SCREW$15.49$12.70Usually ships in 7-10 business days
593102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
699002-10600-00CIRCLIP$9.49$7.403 In-Stock
790201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
81RC-18101-01-00SHIFT SHAFT ASSY$156.99$122.45Usually ships in 7-10 business days
990508-32141-00SPRING, TORSION$9.49$7.402 In-Stock
10B7N-18175-00-00

(replaces part #
2C0-18175-00-00)

SPACER$18.99$15.57Usually ships in 7-10 business days
111RC-18140-00-00STOPPER LEVER ASSY$28.99$23.77Usually ships in 7-10 business days
1290201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
1399009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
141RC-18112-00-00ARM, SHIFT$42.99$35.25Usually ships in 7-10 business days
1591314-06020-00

(replaces part #
91312-06020-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
1693317-11295-00BEARING$50.99$39.774 In-Stock
17BD5-18110-00-00SHIFT PEDAL ASSY$98.99$77.21Usually ships in 7-10 business days
185EB-18113-00-00COVER, SHIFT PEDAL$8.99$7.017 In-Stock
195LV-18116-00-00JOINT, ROD 1$62.99$49.13Usually ships in 7-10 business days
204XV-18154-00-00COVER, DUST$8.49$6.624 In-Stock
2195380-06700-00

(replaces part #
95304-06700-00)

NUT$9.49$7.404 In-Stock
22BD5-82470-00-00SHIFT SWITCH ASSY$242.99$192.60Usually ships in 7-10 business days
2395380-06700-00

(replaces part #
95304-06700-00)

NUT$9.49$7.404 In-Stock
24BD5-18115-00-00ROD, SHIFT$31.99$26.23Usually ships in 7-10 business days
2590170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
2690387-06322-00COLLAR$8.49$7.64Usually ships in 7-10 business days
2792012-06020-00

(replaces part #
90111-06098-00)

BOLT, BUTTON HEAD$9.49$7.403 In-Stock
