STEERING HANDLE CABLE

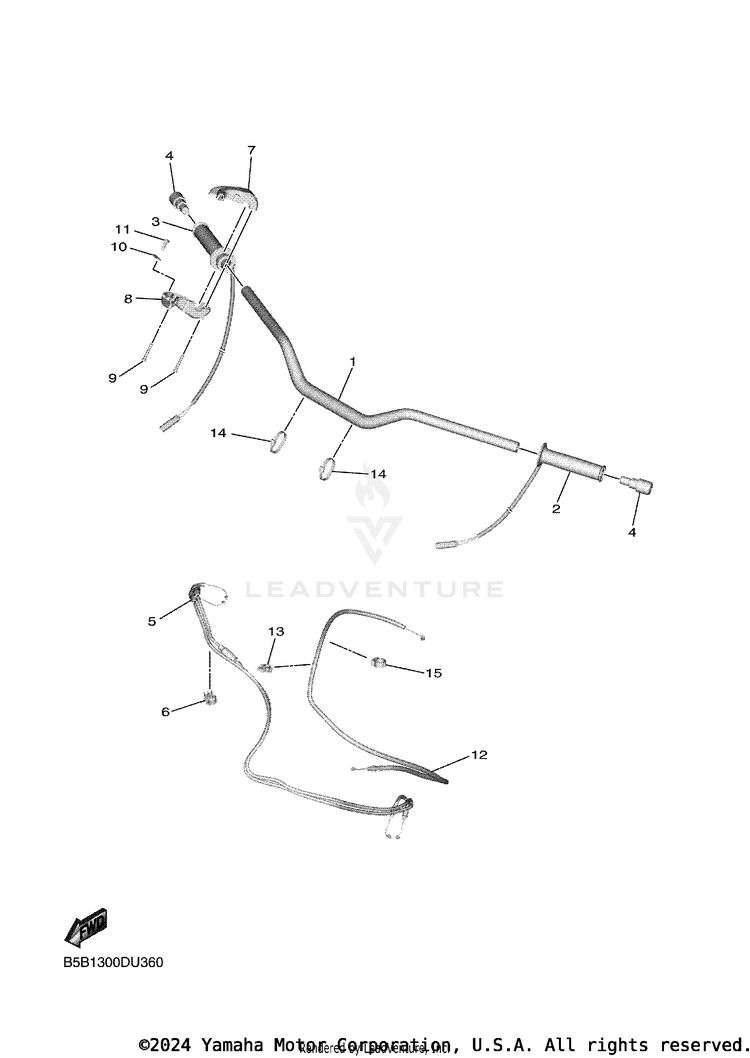

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD5-26111-00-00HANDLEBAR$305.99$238.67Usually ships in 7-10 business days
2B5B-82963-01-00

(replaces part #
B5B-82963-00-00)

GRIP, WARMER (LEFT)$142.99$112.79Usually ships in 7-10 business days
3B5B-82960-01-00

(replaces part #
B5B-82960-00-00)

GRIP, WARMER$159.99$126.55Usually ships in 7-10 business days
45GJ-26246-00-00END, GRIP$31.99$24.952 In-Stock
5BD5-26302-00-00THROTTLE CABLE ASSY$54.99$42.89Usually ships in 7-10 business days
690464-16023-00CLAMP$3.85$3.46Usually ships in 7-10 business days
7BD5-26281-00-00CAP, GRIP UPPER$38.99$31.97Usually ships in 7-10 business days
8BD5-26282-00-00CAP, GRIP UNDER$38.99$31.97Usually ships in 7-10 business days
991317-05035-00BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
102D2-26299-00-00PLATE, MIRROR FITTING 2$10.99$9.01Usually ships in 7-10 business days
1198902-03010-00

(replaces part #
90154-03001-00)

SCREW BINDING HEAD ($0.85$0.76Usually ships in 7-10 business days
12BD5-26335-00-00CABLE, CLUTCH$31.99$26.23Usually ships in 7-10 business days
1390464-10014-00CLAMP$2.15$1.94Usually ships in 7-10 business days
1490464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (125.0x7.0)$4.41$3.7910+ In-Stock
1590464-16061-00CLAMP$6.99$4.29Not Shipping
