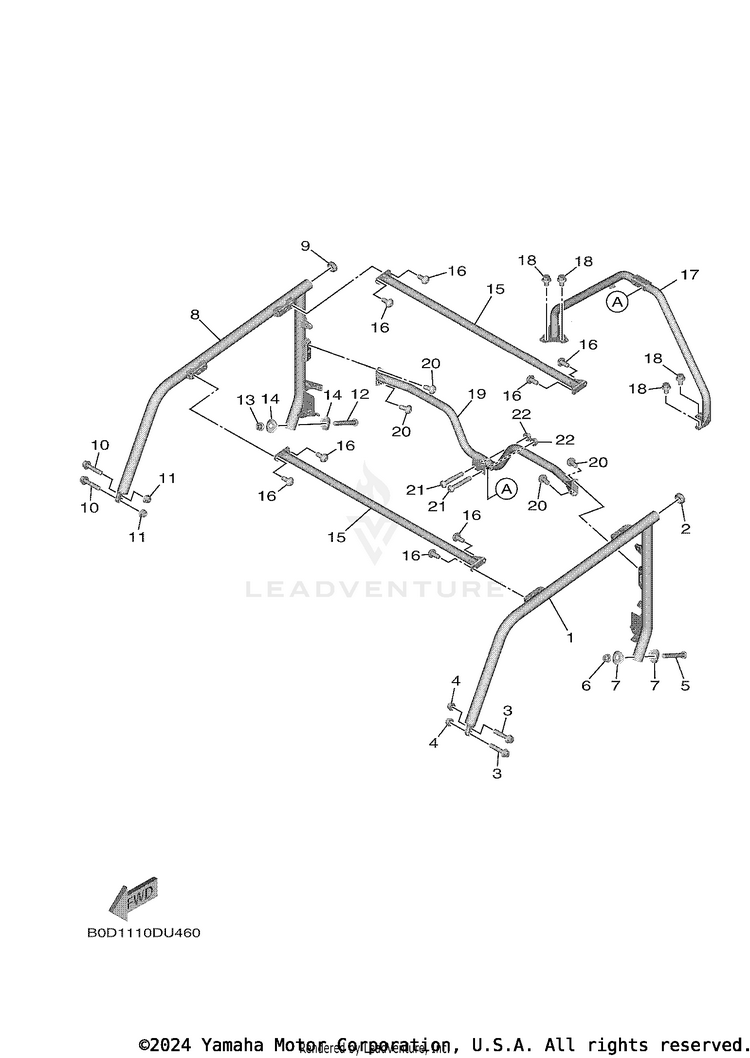

2019 Yamaha Wolverine X2 Guard 2 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B8K-K831A-00-00	SUPPORT, ROOF 3	$725.99	$605.75	Usually ships in 7-10 business days
2	B8K-F2417-00-00	PLUG	$2.70	$2.43	Usually ships in 7-10 business days
3	95812-10045-00	BOLT, FLANGE	$6.99	$5.45	10+ In-Stock
4	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
5	92012-10070-00	BOLT, BUTTON HEAD	$4.70	$4.23	Usually ships in 7-10 business days
6	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
7	1XD-K7526-00-00	WASHER 2	$5.99	$4.67	3 In-Stock
8	B8K-K831E-00-00	SUPPORT, ROOF 4	$698.99	$584.62	Usually ships in 7-10 business days
9	B8K-F2417-00-00	PLUG	$2.70	$2.43	Usually ships in 7-10 business days
10	95812-10045-00	BOLT, FLANGE	$6.99	$5.45	10+ In-Stock
11	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
12	92012-10070-00	BOLT, BUTTON HEAD	$4.70	$4.23	Usually ships in 7-10 business days
13	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
14	1XD-K7526-00-00	WASHER 2	$5.99	$4.67	3 In-Stock
15	BG4-K8392-02-00 (replaces part # BG4-K8392-01-00)	MEMBER, ROOF FRAME	$233.99	$182.51	Usually ships in 7-10 business days
16	90111-10802-00	BOLT, HEX. SOCKET BUTTON	$3.00	$2.59	5 In-Stock
17	B8K-K830B-00-00	ROOF SUPPORT ASSY	$264.99	$209.84	Usually ships in 7-10 business days
18	95812-10016-00	BOLT, FLANGE	$10.49	$8.18	10+ In-Stock
19	B8K-K831M-00-00	REINFORCEMENT, ROO	$277.99	$216.83	Usually ships in 7-10 business days
20	90111-10802-00	BOLT, HEX. SOCKET BUTTON	$3.00	$2.59	5 In-Stock
21	92012-10060-00	BOLT, BUTTON HEAD	$3.50	$3.01	6 In-Stock
22	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
