2019 Yamaha Wolverine X2 Rear Brake Caliper 2 OEM Parts Diagram

Submodel WOLVERINE X2 - YXE85WPBKD - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR BRAKE CALIPER 2

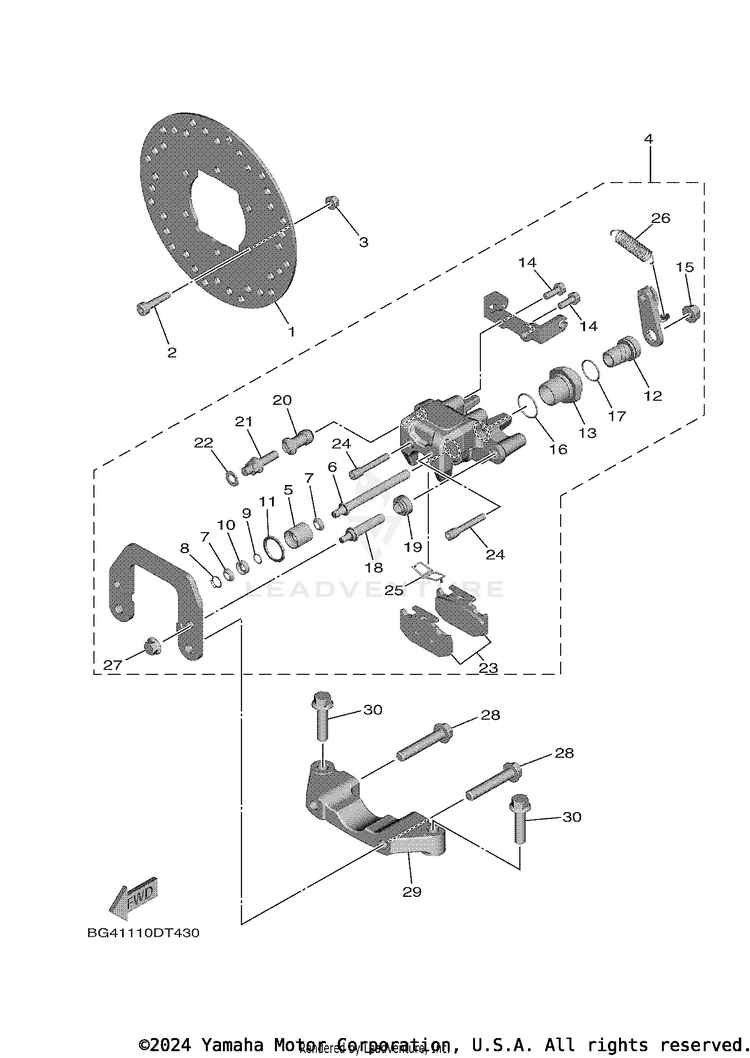

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BG4-F5711-01-00

(replaces part #
BG4-F5711-00-00)

DISC, BRAKE$34.99$28.69Usually ships in 7-10 business days
290110-06228-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
395604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
4BG4-25905-02-00

(replaces part #
BG4-25905-01-00)

PARKING BRAKE ASSY$440.99$365.47Usually ships in 7-10 business days
55B4-25814-10-00PISTON, CALIPER$41.99$34.43Usually ships in 7-10 business days
65B4-25880-00-00PUSH ROD COMP.$31.99$26.23Usually ships in 7-10 business days
75B4-2581R-00-00WASHER, CONICAL SPRING$7.49$5.842 In-Stock
85B4-25415-00-00CIRCLIP$7.49$5.842 In-Stock
95B4-25976-00-00O-RING$2.50$2.153 In-Stock
105B4-25913-00-00RETAINER$9.49$7.401 In-Stock
115B4-25975-00-00RUBBER, BUSHING$8.49$6.621 In-Stock
125B4-25978-00-00SHAFT L$39.99$32.79Usually ships in 7-10 business days
135B4-25973-00-00NUT$56.99$44.45Usually ships in 7-10 business days
145B4-25833-00-00BOLT, FITTING$3.60$3.24Usually ships in 7-10 business days
151UY-25973-51-00NUT$7.49$6.743 In-Stock
165B4-25976-10-00O-RING$3.70$3.33Usually ships in 7-10 business days
175B4-25976-20-00O-RING$7.49$6.74Usually ships in 7-10 business days
183JD-25926-00-00BOLT$8.49$6.628 In-Stock
193JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
201UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
211UY-25926-51-00BOLT$4.85$4.179 In-Stock
221UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
23BG4-25806-01-00

(replaces part #
BG4-25806-00-00)

BRAKE PAD KIT 2$78.99$61.61Usually ships in 7-10 business days
245B4-25924-00-00PIN, PAD$14.49$11.3010+ In-Stock
255B4-25919-00-00SUPPORT, PAD$15.49$12.083 In-Stock
265B4-25977-00-00SPRING, RETURN$8.49$6.621 In-Stock
275B4-2585F-00-00NUT$7.49$6.74Usually ships in 7-10 business days
2890105-10402-00BOLT, FLANGE$10.49$8.186 In-Stock
29BG4-2537W-00-00BRACKET 1$41.99$34.43Usually ships in 7-10 business days
3090105-10256-00BOLT, FLANGE$4.00$3.60Usually ships in 7-10 business days
