2020 Yamaha GRIZZLY 700 4x4 Frame OEM Parts Diagram

Submodel GRIZZLY EPS - YFM70GPALG - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

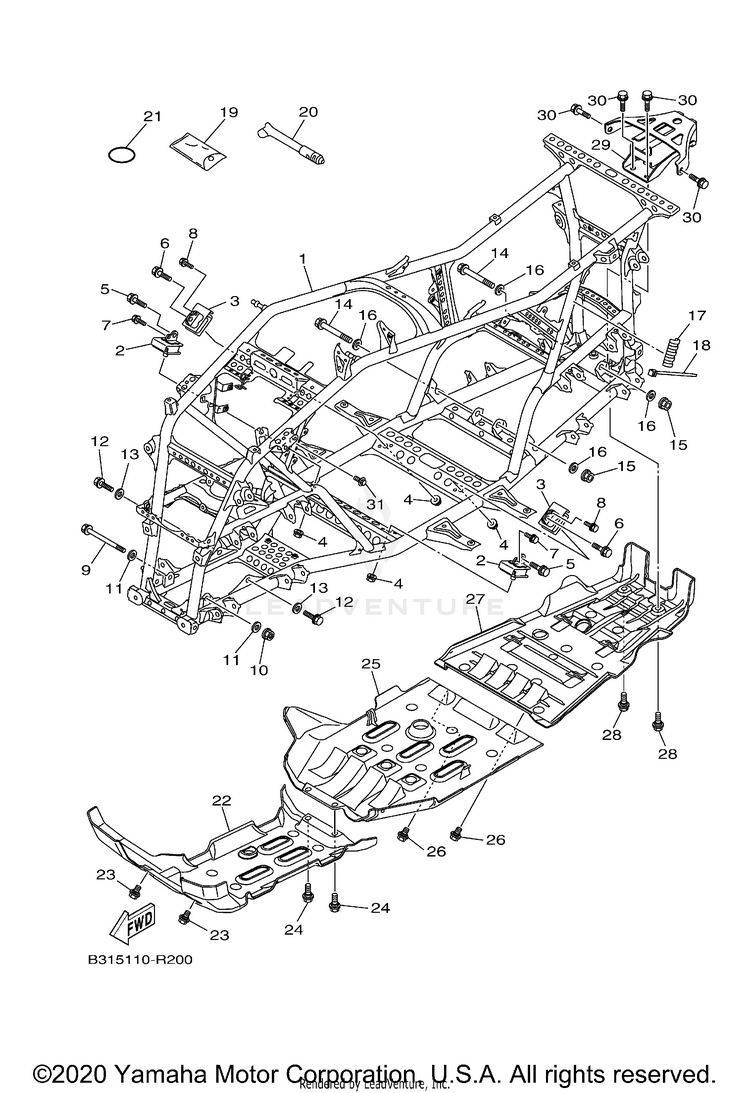

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UD-F1110-11-00

(replaces part #
2UD-F1110-10-00)

FRAME$1,121.99$938.39Usually ships in 7-10 business days
2B16-21485-00-00DAMPER, RUBBER 1$33.99$27.87Usually ships in 7-10 business days
3B16-21485-00-00DAMPER, RUBBER 1$33.99$27.87Usually ships in 7-10 business days
490185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
595812-10035-00BOLT, FLANGE$6.49$5.064 In-Stock
695812-10035-00BOLT, FLANGE$6.49$5.064 In-Stock
795024-06016-00

(replaces part #
90105-06639-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
895024-06016-00

(replaces part #
90105-06639-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
990105-10219-00BOLT, FLANGE$8.49$6.624 In-Stock
1090185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
1190201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
1295817-10030-00

(replaces part #
90105-10237-00)

BOLT, FLANGE$9.49$7.408 In-Stock
1390201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
1490105-10238-00BOLT, FLANGE$9.49$7.406 In-Stock
1590185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
1690201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
173B4-2113B-01-00DAMPER$19.99$16.39Usually ships in 7-10 business days
1890464-40825-00CLAMP$3.05$2.74Usually ships in 7-10 business days
192BG-F8100-00-00TOOL KIT$22.99$18.85Usually ships in 7-10 business days
201NV-2811A-01-00GAUGE, AIR$62.99$49.133 In-Stock
2193210-64297-00O-RING$8.99$7.3510+ In-Stock
22B16-F147A-00-00GUARD, ENGINE 1-$33.956 In-Stock
2390109-06202-00BOLT$3.10$2.6710+ In-Stock
2490109-06214-00BOLT$8.49$6.6210+ In-Stock
251HP-F147E-02-00

(replaces part #
1HP-F147E-01-00)

GUARD, ENGINE 2-$39.073 In-Stock
2690109-06214-00BOLT$8.49$6.6210+ In-Stock
27B16-F147F-01-00

(replaces part #
B16-F147F-00-00)

GUARD, ENGINE 3$36.99$28.853 In-Stock
2890109-06202-00BOLT$3.10$2.6710+ In-Stock
292SM-F3802-00-00REAR HITCH ASSY$111.99$99.42Usually ships in 7-10 business days
3095812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
3195817-06012-00

(replaces part #
95812-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
