2020 Yamaha GRIZZLY 700 4x4 Shift Shaft OEM Parts Diagram

Submodel GRIZZLY EPS - YFM70GPALG - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

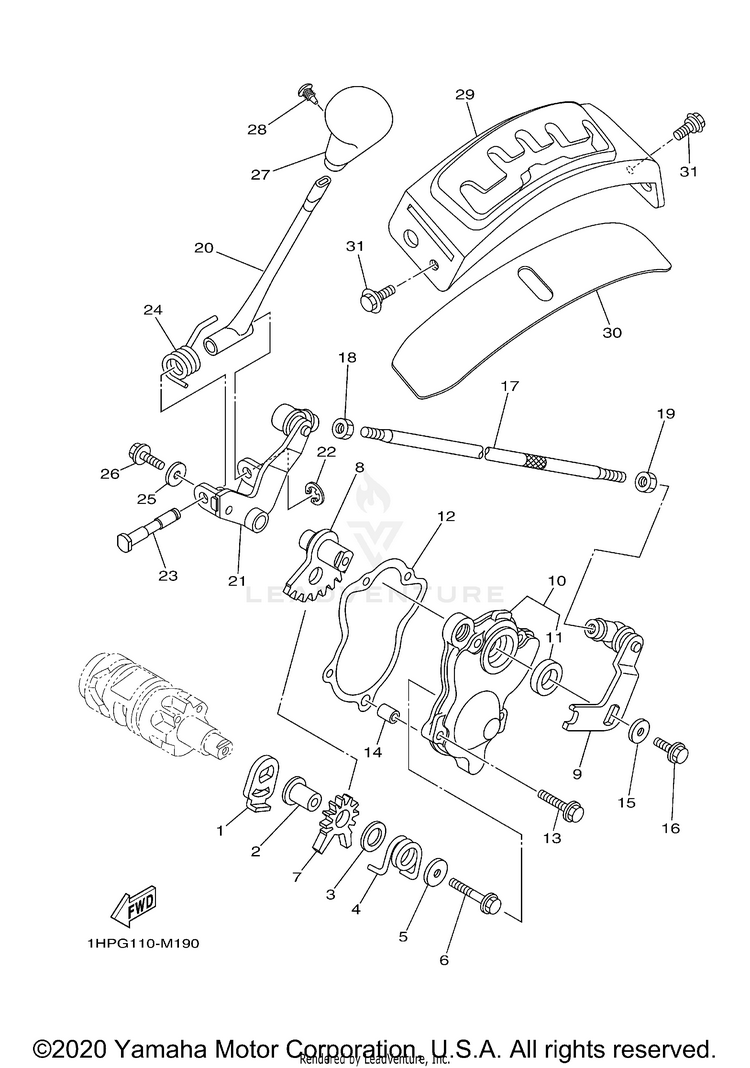

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14SH-18198-00-00LEVER$24.99$19.491 In-Stock
290387-0613B-00COLLAR$10.49$8.181 In-Stock
390201-13013-00

(replaces part #
90201-132G5-00)

WASHER, PLATE$9.49$7.403 In-Stock
490508-32117-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
590201-06036-00WASHER, PLATE$9.49$7.404 In-Stock
695812-06035-00BOLT, FLANGE$5.49$4.941 In-Stock
75KM-18191-00-00LEVER$27.99$21.836 In-Stock
81HP-18103-00-00SHIFT SHAFT COMP.$65.99$51.47Usually ships in 7-10 business days
928P-18104-00-00SHIFT GUIDE COMP.$38.99$31.97Usually ships in 7-10 business days
101HP-18380-00-00SHIFTER BRKT. ASSY$41.99$34.43Usually ships in 7-10 business days
1193102-17263-00OIL SEAL$11.49$8.9610+ In-Stock
123B4-18146-00-00GASKET$7.49$5.84
1395027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
1499530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
1590201-06036-00WASHER, PLATE$9.49$7.404 In-Stock
1690105-06175-00

(replaces part #
90105-06176-00)

BOLT,WASHER BASED$3.85$3.46Usually ships in 7-10 business days
1728P-18115-00-00ROD, SHIFT$30.99$25.41Usually ships in 7-10 business days
1890170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
1995317-06700-00

(replaces part #
95312-06700-00)

NUT$9.49$7.402 In-Stock
201HP-E8190-01-00LEVER COMP. 1$21.99$17.152 In-Stock
211HP-E8169-00-00ARM, SHIFT 2$18.49$14.425 In-Stock
2299001-06600-00

(replaces part #
99002-06600-00)

CIRCLIP-$1.402 In-Stock
231HP-E8125-00-00SHAFT, SHIFT$14.49$11.88Usually ships in 7-10 business days
241HP-E8196-00-00SPRING, RETURN$9.49$8.54Usually ships in 7-10 business days
2590201-06036-00WASHER, PLATE$9.49$7.404 In-Stock
2695817-06016-00

(replaces part #
95812-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
2728P-18174-00-00KNOB, SHIFT LEVER$24.99$19.491 In-Stock
2890269-05055-00RIVET$9.49$7.4010+ In-Stock
291HP-E8172-00-00GUIDE, SHIFT$26.99$22.13Usually ships in 7-10 business days
301HP-E8154-01-00

(replaces part #
1HP-E8154-00-00)

COVER, DUST$8.49$7.642 In-Stock
3190109-06043-00BOLT$3.00$2.589 In-Stock
