2020 Yamaha Wolverine X2 R-Spec Front Brake Caliper OEM Parts Diagram

Submodel WOLVERINE X2 R-SPEC - YXE85WPALW - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

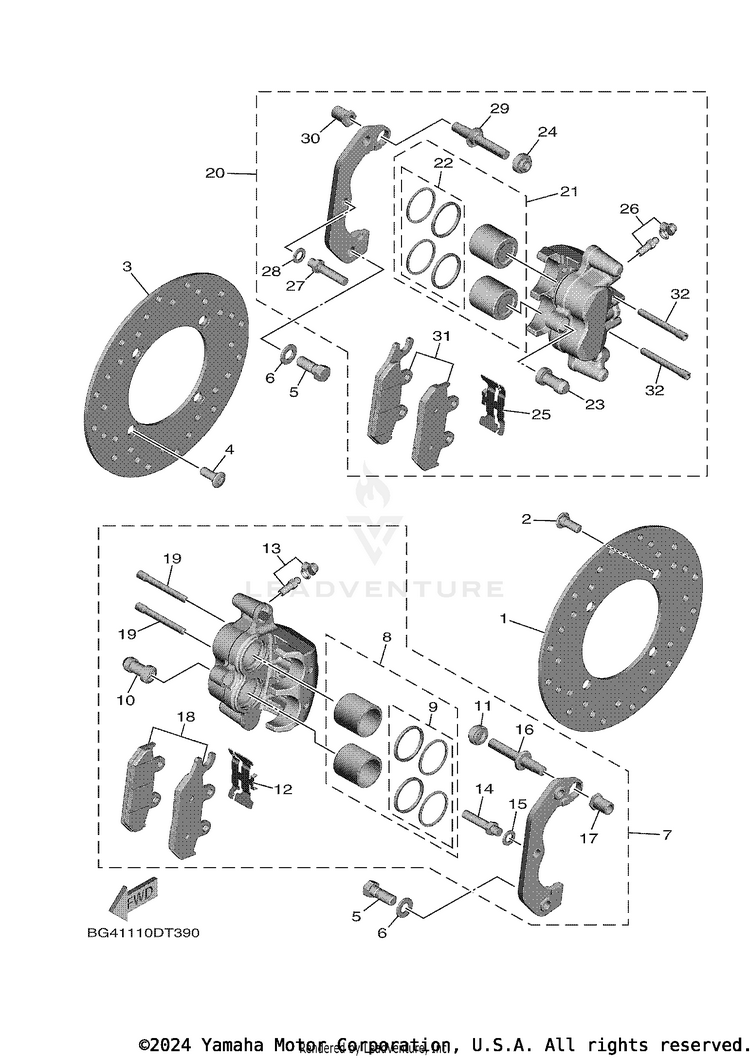

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-F582T-00-00DISC, BRAKE (LEFT)$43.99$34.316 In-Stock
290109-08077-00

(replaces part #
90109-08253-00)

BOLT-$3.7810+ In-Stock
32MB-F582T-00-00DISC, BRAKE (LEFT)$43.99$34.316 In-Stock
490109-08077-00

(replaces part #
90109-08253-00)

BOLT-$3.7810+ In-Stock
590101-10045-00BOLT$3.20$2.88Usually ships in 7-10 business days
690201-10033-00

(replaces part #
90201-10013-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
71XD-2580T-00-00CALIPER ASSY (LEFT)$462.99$382.53Usually ships in 7-10 business days
81XD-25802-00-00PISTON ASSY, CALIPER$48.99$40.17Usually ships in 7-10 business days
91XD-25803-00-00CALIPER SEAL KIT$46.99$38.53Usually ships in 7-10 business days
101UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
113JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
121XD-25919-00-00SUPPORT, PAD$14.49$11.88Usually ships in 7-10 business days
1336Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
141UY-25926-51-00BOLT$4.85$4.179 In-Stock
151UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
163JD-25926-00-00BOLT$8.49$6.628 In-Stock
173JD-25961-00-00NUT$9.49$7.40Not Shipping
181XD-25805-00-00BRAKE PAD KIT$49.99$42.095 In-Stock
AFTERMARKET ALTERNATIVE
$40.02$38.027 In-Stock
193TB-25933-00-00WASHER, PAD PIN$21.99$17.154 In-Stock
201XD-2580U-00-00CALIPER ASSY (RIGHT)$462.99$382.53Usually ships in 7-10 business days
211XD-25802-00-00PISTON ASSY, CALIPER$48.99$40.17Usually ships in 7-10 business days
221XD-25803-00-00CALIPER SEAL KIT$46.99$38.53Usually ships in 7-10 business days
231UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
243JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
251XD-25919-00-00SUPPORT, PAD$14.49$11.88Usually ships in 7-10 business days
2636Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
271UY-25926-51-00BOLT$4.85$4.179 In-Stock
281UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
293JD-25926-00-00BOLT$8.49$6.628 In-Stock
303JD-25961-00-00NUT$9.49$7.40Not Shipping
311XD-25805-10-00BRAKE PAD KIT$48.99$41.534 In-Stock
AFTERMARKET ALTERNATIVE
$40.02$38.029 In-Stock
323TB-25933-00-00WASHER, PAD PIN$21.99$17.154 In-Stock
