2020 Yamaha Wolverine X2 R-Spec Guard OEM Parts Diagram

Submodel WOLVERINE X2 R-SPEC - YXE85WPALW - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GUARD

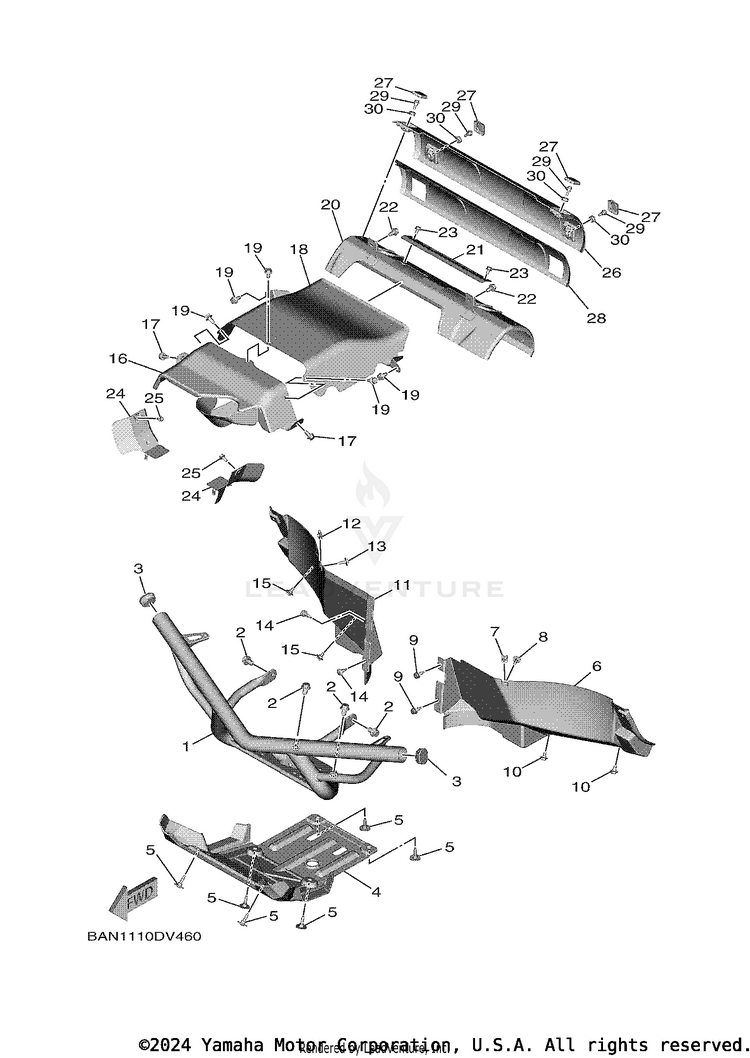

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BAR-F845N-11-00BAR, CARRY FRONT$253.99$198.11Usually ships in 7-10 business days
295812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
35UG-F2417-00-00PLUG$7.49$5.8410+ In-Stock
42MB-F8385-01-00

(replaces part #
2MB-F8385-00-00)

COVER, LOWER-$49.174 In-Stock
590109-068A5-00BOLT$8.49$6.6210+ In-Stock
6BG4-F2361-01-00GUARD 1$20.99$16.372 In-Stock
790183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
890119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
990269-07805-00RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
1090109-06202-00BOLT$3.10$2.6710+ In-Stock
11BG4-F2362-01-00GUARD 2$29.99$24.59Usually ships in 7-10 business days
1290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1390119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1490269-07805-00RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
1590109-06202-00BOLT$3.10$2.6710+ In-Stock
16BG4-F2898-02-00

(replaces part #
BG4-F2898-01-00)

INSULATOR, HEAT$49.99$40.99Usually ships in 7-10 business days
1790105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
18BG4-F3892-01-00SHIELD, HEAT$31.99$26.23Usually ships in 7-10 business days
1990105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
20BG4-F2891-01-00INSULATOR, MOUNTING$53.99$42.11Usually ships in 7-10 business days
21BG4-F2894-00-00INSULATOR, MOUNTING 2$4.10$3.69Usually ships in 7-10 business days
2290105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
2395812-06010-00BOLT, FLANGE$5.49$4.2810+ In-Stock
24BAR-F2825-00-00PROTECTOR 1$10.49$8.60Usually ships in 7-10 business days
2590105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
26B8K-F194H-00-00PROTECTOR, MUFFLER$33.99$27.87Usually ships in 7-10 business days
272MB-F143A-00-00CAP$1.95$1.688 In-Stock
28B8K-F2898-01-00INSULATOR, HEAT$36.99$30.33Usually ships in 7-10 business days
2990109-06262-00BOLT$10.49$8.1810+ In-Stock
3090480-12025-00GROMMET$8.49$6.628 In-Stock
