2020 Yamaha Wolverine X2 R-Spec Guard 2 OEM Parts Diagram

Submodel WOLVERINE X2 R-SPEC - YXE85WPALW - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GUARD 2

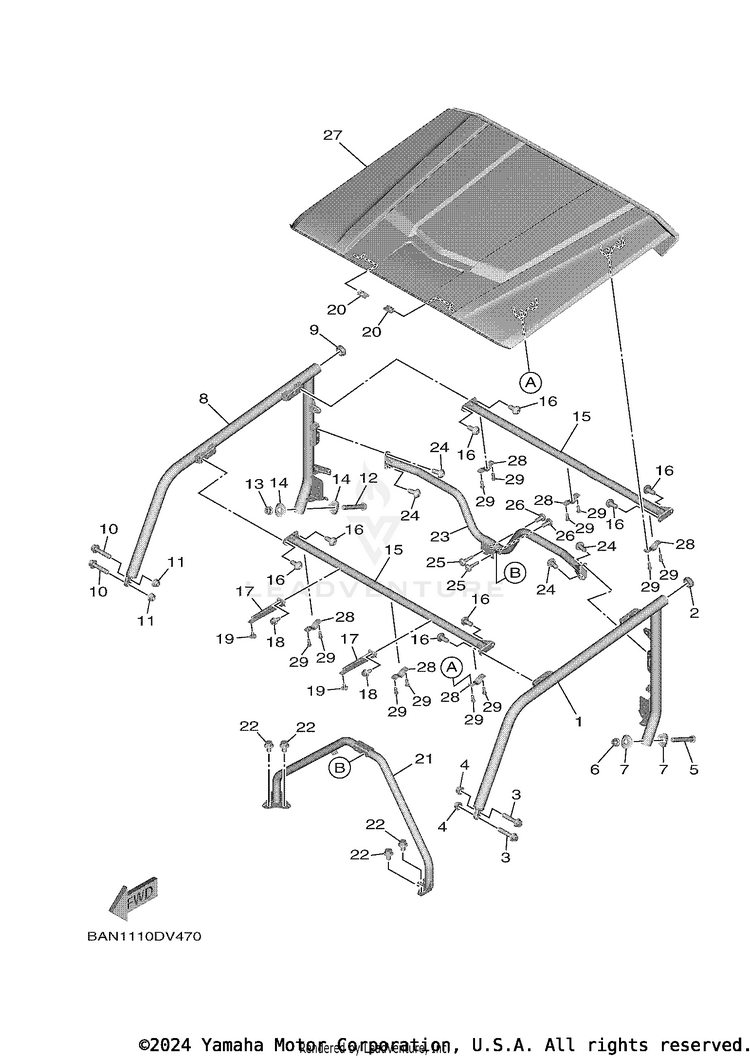

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B8K-K831A-10-00SUPPORT, ROOF 3$698.99$584.69Usually ships in 7-10 business days
2B8K-F2417-00-00PLUG$2.70$2.43Usually ships in 7-10 business days
395817-10045-00BOLT, WASHER BASED$6.99$5.4510+ In-Stock
490185-10819-00NUT, SELF-LOCKING$1.25$1.088 In-Stock
592017-10070-00BOLT, BUTTON HEAD$5.49$4.284 In-Stock
690185-10819-00NUT, SELF-LOCKING$1.25$1.088 In-Stock
71XD-K7526-00-00WASHER 2$5.99$4.673 In-Stock
8B8K-K831E-10-00SUPPORT, ROOF 4$700.99$586.59Usually ships in 7-10 business days
9B8K-F2417-00-00PLUG$2.70$2.43Usually ships in 7-10 business days
1095817-10045-00BOLT, WASHER BASED$6.99$5.4510+ In-Stock
1190185-10819-00NUT, SELF-LOCKING$1.25$1.088 In-Stock
1292017-10070-00BOLT, BUTTON HEAD$5.49$4.284 In-Stock
1390185-10819-00NUT, SELF-LOCKING$1.25$1.088 In-Stock
141XD-K7526-00-00WASHER 2$5.99$4.673 In-Stock
15BG4-K8392-12-00MEMBER, ROOF FRAME$142.99$111.53Usually ships in 7-10 business days
1690111-10802-00BOLT, HEX. SOCKET BUTTON$3.00$2.595 In-Stock
17B8K-F2567-00-00SUPPORT 1$7.49$6.74Usually ships in 7-10 business days
1890105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
1990111-06083-00BOLT, HEX. SOCKET BUTTON$8.49$7.642 In-Stock
2090183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
21B8K-K830B-10-00ROOF SUPPORT ASSY$281.99$234.29Usually ships in 7-10 business days
2295812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
23B8K-K831M-10-00REINFORCEMENT, ROO$205.99$162.84Usually ships in 7-10 business days
2490111-10802-00BOLT, HEX. SOCKET BUTTON$3.00$2.595 In-Stock
255UG-K7519-00-00BOLT$3.00$2.70Usually ships in 7-10 business days
265UG-K7573-00-00NUT, SPECIAL$5.49$4.94Usually ships in 7-10 business days
27B8K-K8314-00-00COVER, SUN ROOF-$439.531 In-Stock
28BAN-K8366-00-00CLAMP, SUPPORT$9.49$7.406 In-Stock
2990169-06801-00TAPPING SCREW-$1.0110+ In-Stock
