2020 Yamaha YZF-R3 Front Master Cylinder OEM Parts Diagram

Submodel YZFR3 - YZFR3LL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

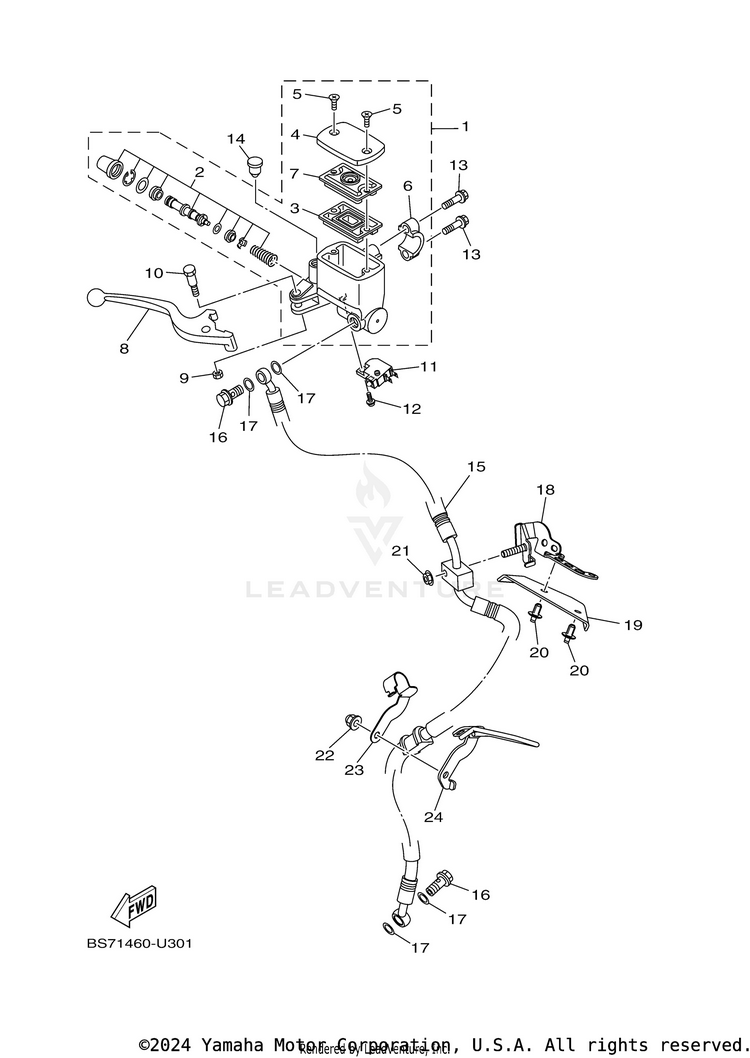

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-F5870-00-00MASTER CYLINDER SUB ASSY$93.99$73.31Usually ships in 7-10 business days
21WD-F5807-00-00CYLINDER KIT, MASTER$36.99$30.33Usually ships in 7-10 business days
35RB-25854-00-00DIAPHRAGM, RESERVOIR$6.49$5.062 In-Stock
41WD-F5852-00-00CAP, RESERVOIR$8.49$7.642 In-Stock
598707-04012-00

(replaces part #
36Y-2589H-00-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
656A-25867-00-00

(replaces part #
3RW-F5867-00-00)

BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
73C1-F5855-00-00BUSH, DIAPHRAGM$0.45$0.40Usually ships in 7-10 business days
81WD-H3922-00-00LEVER 2$10.49$8.246 In-Stock
995617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1090109-06577-00BOLT$6.49$5.0610+ In-Stock
112DP-H3980-01-00

(replaces part #
2DP-H3980-00-00)

FRONT STOP SWITCH ASSY$13.49$11.06Usually ships in 7-10 business days
1297602-04216-00

(replaces part #
97602-04212-00)

SCREW, PAN HEAD WITH$3.65$3.28Usually ships in 7-10 business days
1395027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
1490338-09012-00PLUG$10.49$8.186 In-Stock
15BS7-F5872-00-00HOSE, BRAKE 1$61.99$48.35Usually ships in 7-10 business days
1690401-10159-00

(replaces part #
90401-10812-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1790201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
18BS7-F5875-00-00HOLDER, BRAKE HOSE 1$7.99$7.19Usually ships in 7-10 business days
19BS7-F3818-00-00COVER, STEERING$2.75$2.48Usually ships in 7-10 business days
2090269-06816-00RIVET$1.70$1.53Usually ships in 7-10 business days
2195702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
2290176-06065-00NUT, CROWN$10.49$8.188 In-Stock
23BS7-F587A-00-00HOLDER, BRAKE HOSE$4.35$3.92Usually ships in 7-10 business days
24BS7-F5887-00-00HOLDER, BRAKE HOSE$9.49$8.54Usually ships in 7-10 business days
