2020 Yamaha YZF-R3 Taillight OEM Parts Diagram

Submodel YZFR3 - YZFR3LL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

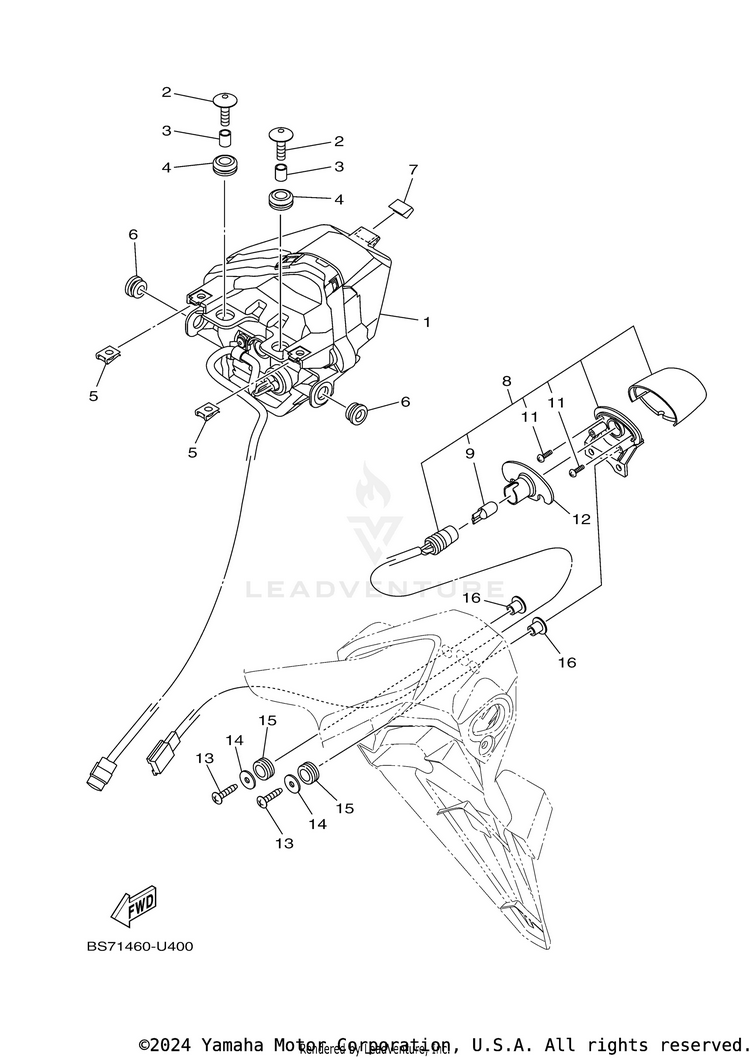

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-H4710-02-00

(replaces part #
1WD-H4710-01-00)

TAILLIGHT UNIT ASS$318.99$259.51Usually ships in 7-10 business days
290111-06117-00BOLT, HEX. SOCKET BUTTON$2.80$2.52Usually ships in 7-10 business days
390387-067V1-00COLLAR$3.30$2.847 In-Stock
490480-13001-00GROMMET$1.30$1.17Usually ships in 7-10 business days
590183-05042-00

(replaces part #
90183-05807-00)

NUT, SPRING-$3.2010+ In-Stock
690480-10003-00GROMMET$9.49$8.54Usually ships in 7-10 business days
71WD-F1732-00-00SEAL 1$1.60$1.44Usually ships in 7-10 business days
8BS7-H4740-00-00LICENCE LIGHT ASSY$22.99$18.85Usually ships in 7-10 business days
91WD-H4744-00-00BULB (12V-5W)$13.49$11.06Usually ships in 7-10 business days
101WD-H4547-00-00CORD, LICENSE LIGHT$6.49$5.84Usually ships in 7-10 business days
111WD-H4726-00-00SCREW$0.50$0.45Usually ships in 7-10 business days
121WD-H4753-00-00DAMPER$1.30$1.17Usually ships in 7-10 business days
1397707-40020-00SCREW, TAPPING$0.75$0.68Usually ships in 7-10 business days
1490201-047A2-00

(replaces part #
90201-04804-00)

WASHER, PLATE$4.00$3.445 In-Stock
1590480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
1690387-05042-00COLLAR$6.49$5.844 In-Stock
