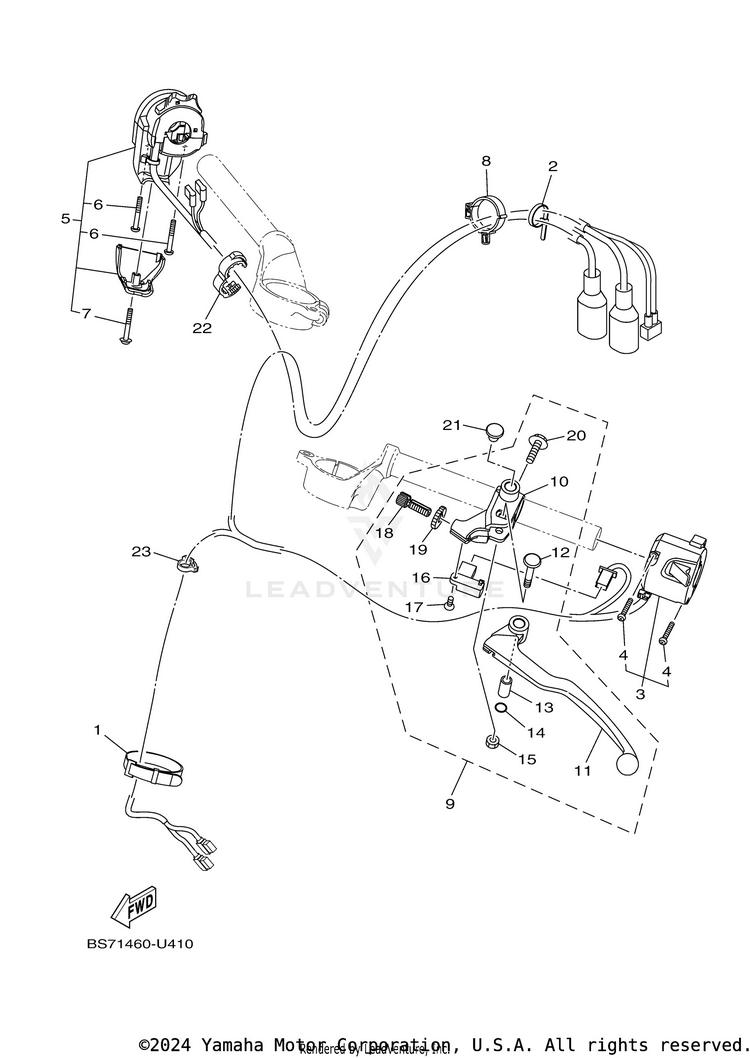

2020 Yamaha YZF-R3 Handle Switch & Lever OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	25G-83936-01-00 (replaces part # 3AY-H3936-00-00)	BAND, SWITCH CORD	$5.49	$4.28	3 In-Stock
2	90464-36005-00	CLAMP	$0.99	$0.89	Usually ships in 7-10 business days
3	BS7-H3972-01-00 (replaces part # BS7-H3972-00-00)	SWITCH, HANDLE 4	$112.99	$88.13	Usually ships in 7-10 business days
4	98517-04025-00 (replaces part # 98507-04025-00)	SCREW, PAN HEAD	$3.30	$2.84	10+ In-Stock
5	BS7-H3975-02-00 (replaces part # BS7-H3975-00-00)	SWITCH, HANDLE 2	$77.99	$60.83	Usually ships in 7-10 business days
6	98507-04030-00	SCREW, PAN HEAD	$1.70	$1.53	Usually ships in 7-10 business days
7	97607-04230-00	SCREW,WITH WASHER	$2.65	$2.38	Usually ships in 7-10 business days
8	90464-30001-00	CLAMP	$8.49	$7.64	Usually ships in 7-10 business days
9	1WD-H2910-00-00	LEVER HOLDER ASSY (LEFT)	$108.99	$89.45	Usually ships in 7-10 business days
10	1WD-H2911-00-00	HOLDER, LEVER 1	$19.49	$16.39	Usually ships in 7-10 business days
11	1WD-H3912-00-00	LEVER 1	-	$18.17	4 In-Stock
12	31A-83945-00-00	BOLT, LEVER	$5.99	$5.39	1 In-Stock
13	31A-83913-00-00	COLLAR, LEVER 1	$24.99	$20.49	Usually ships in 7-10 business days
14	93210-10118-00 (replaces part # 93210-108H5-00)	O-RING	$8.49	$7.64	Usually ships in 7-10 business days
15	95617-06100-00 (replaces part # 95602-06100-00)	NUT, U	$2.90	$2.49	10+ In-Stock
16	5BP-H2917-00-00	SWITCH	$17.49	$14.34	Usually ships in 7-10 business days
17	98707-03008-00 (replaces part # 90151-03005-00)	SCREW, FLAT HEAD	$8.49	$7.64	Usually ships in 7-10 business days
18	90123-08002-00 (replaces part # 90123-08083-00)	BOLT	$10.49	$8.18	10+ In-Stock
19	90179-08030-00 (replaces part # 90179-08316-00)	NUT	$10.49	$8.18	10+ In-Stock
20	97507-06525-00	BOLT, WITH WASHER	$1.40	$1.26	Usually ships in 7-10 business days
21	90338-09012-00	PLUG	$10.49	$8.18	6 In-Stock
22	90464-13227-00	CLAMP	$8.99	$8.09	Usually ships in 7-10 business days
23	90464-22800-00	CLAMP	$1.15	$1.04	Usually ships in 7-10 business days
