2021 Yamaha Wolverine RMAX2 1000 Electrical 2 OEM Parts Diagram

Submodel WOLVERINE RMAX 2 - YXE10WPAMW - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

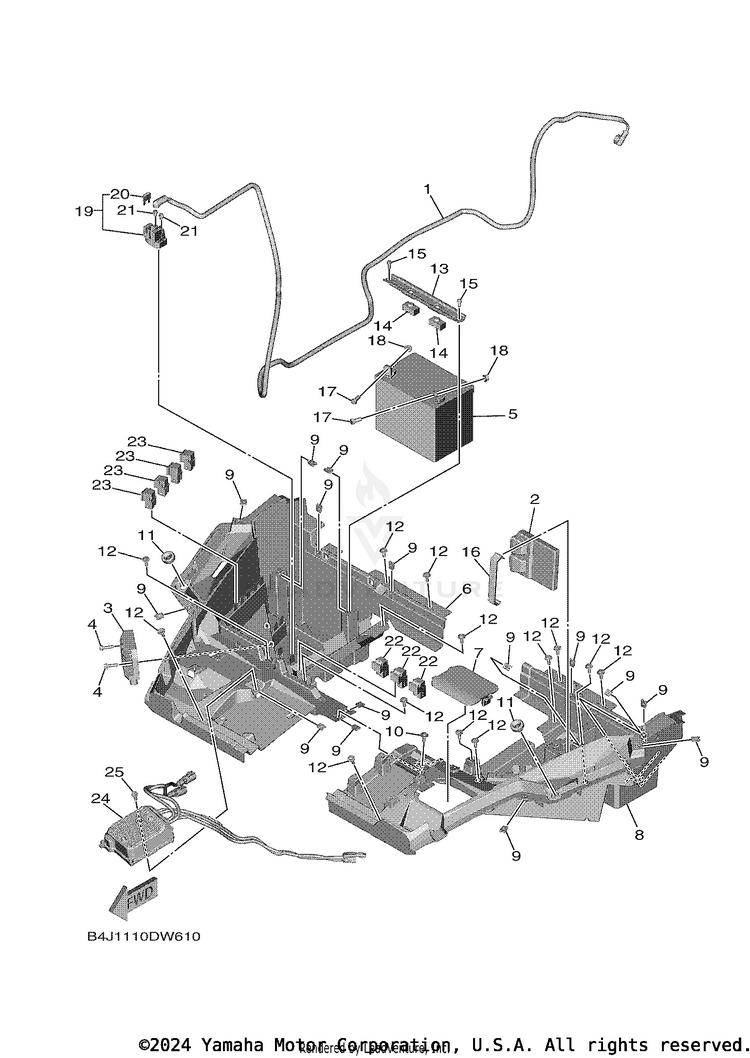

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B1R-81815-00-00CORD, STARTER MOTOR$168.99$131.81Usually ships in 7-10 business days
2B4J-8591A-01-00

(replaces part #
B4J-8591A-00-00)

ENGINE CONTROL UNIT ASSY$959.99$800.66Usually ships in 7-10 business days
3B5H-81960-00-00RECTIFIER & REGULATO$286.99$223.85Usually ships in 7-10 business days
490105-06833-00BOLT, FLANGE$2.30$1.983 In-Stock
511U-1LD00-00-00

(replaces part #
5UG-H2100-10-00)

BATTERY ASSY (GS U1L-11)$139.95$111.17Not Shipping
6B4J-H212B-01-00BOX, BATTERY 1$47.99$39.35Usually ships in 7-10 business days
7B4J-H246B-01-00

(replaces part #
B4J-H246B-00-00)

COVER 1$4.20$3.78Usually ships in 7-10 business days
8B4J-H2565-01-00PANEL, SWITCH$68.99$53.81Usually ships in 7-10 business days
990183-062A1-00NUT, SPRING$2.20$1.8910+ In-Stock
1090119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1190480-16807-00GROMMET$1.40$1.207 In-Stock
12JW1-K6179-01-00

(replaces part #
90119-06868-00)

BOLT, SPECIAL 1$1.75$1.5010+ In-Stock
132HC-H2128-00-00BRACKET, BATTERY$11.49$9.42Usually ships in 7-10 business days
143C3-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
1595022-06014-00BOLT, FLANGE$3.40$2.928 In-Stock
165JJ-82131-00-00BAND, BATTERY$14.49$11.881 In-Stock
1797080-08020-00BOLT$2.91$2.62Usually ships in 7-10 business days
1890179-08015-00NUT$10.49$8.60Usually ships in 7-10 business days
195B4-81940-00-00STARTER RELAY ASSY (RC19-080A)$110.99$86.579 In-Stock
AFTERMARKET ALTERNATIVE
$14.99$12.9910+ In-Stock
2042X-82151-00-00FUSE (10A-BL)$4.70$4.0410+ In-Stock
2195022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
225DM-81950-01-00RELAY ASSY (G8HN-1C4T-DJ-Y52)$31.99$24.9510+ In-Stock
238DM-81950-11-00RELAY ASSY (8DM-11)$33.99$26.519 In-Stock
24B4J-859A0-00-00POWER STRG. CONT. UN$612.99$533.38Usually ships in 7-10 business days
2595D32-06016-00BLOT, FLANGE DEEP RE$0.50$0.45Usually ships in 7-10 business days
