2021 Yamaha Wolverine RMAX2 1000 Frame OEM Parts Diagram

Submodel WOLVERINE RMAX 2 - YXE10WPAMW - 2021

Shop Aftermarket Parts

FRAME

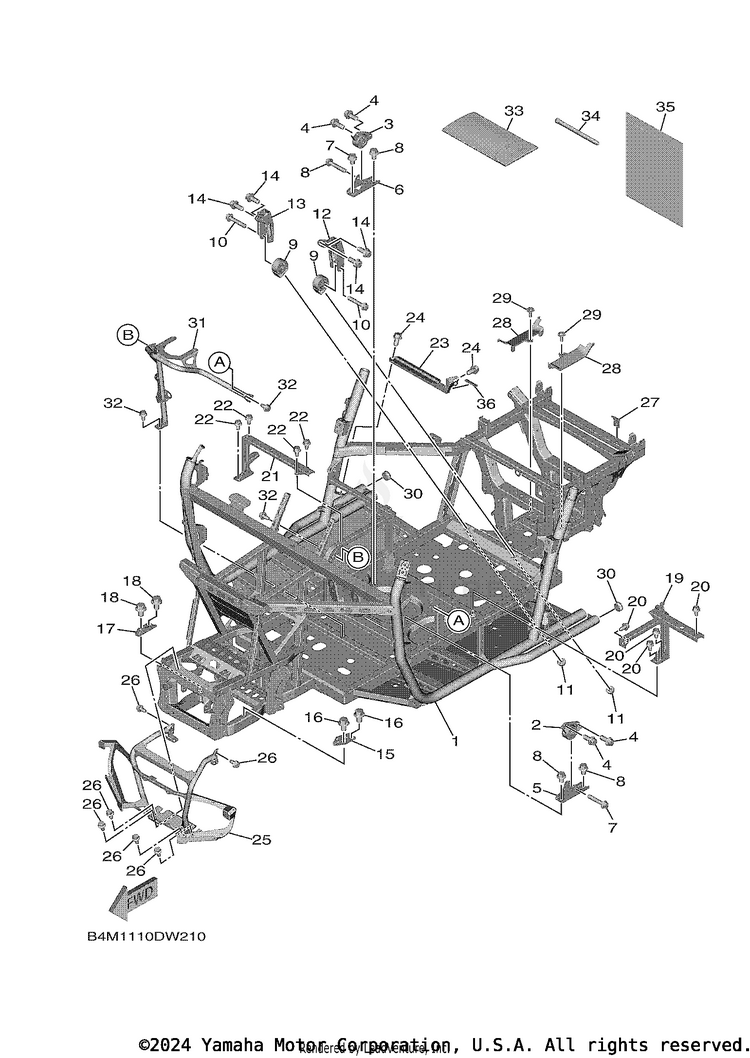

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4M-F1110-10-00

(replaces part #
B4M-F1110-00-00)

FRAME COMP.$3,796.99$3,796.99Usually ships in 7-10 business days
2BG4-21410-00-00ENGINE BRACKET COMP.$80.99$63.17Usually ships in 7-10 business days
3BG4-21420-00-00ENGINE BRACKET COMP. 2$80.99$63.17Usually ships in 7-10 business days
495D32-10025-00BOLT, FLANGE DEEP RE$1.55$1.40Usually ships in 7-10 business days
5BG4-F161F-00-00BRACKET 5$13.49$11.06Usually ships in 7-10 business days
6BG4-F161A-00-00BRACKET 3$8.99$8.09Usually ships in 7-10 business days
795D32-12065-00BOLT, FLANGE DEEP RE$3.95$3.56Usually ships in 7-10 business days
895D32-10016-00BOLT, FLANGE DEEP RE$1.40$1.26Usually ships in 7-10 business days
9B4J-21490-10-00BRACKET, ENGINE 1$90.99$75.43Usually ships in 7-10 business days
1095D32-12065-00BOLT, FLANGE DEEP RE$3.95$3.56Usually ships in 7-10 business days
1190179-10033-00NUT$99,999.99$99,999.99Not Shipping
12B4J-F1283-03-00

(replaces part #
B4J-F1283-01-00)

SUPPORT, ENGINE$23.99$19.67Usually ships in 7-10 business days
13B4J-F1284-03-00

(replaces part #
B4J-F1284-01-00)

SUPT., ENGINE 2$26.99$22.13Usually ships in 7-10 business days
1495D32-10025-00BOLT, FLANGE DEEP RE$1.55$1.40Usually ships in 7-10 business days
15B4J-F1239-00-00BRACKET 2$3.75$3.38Usually ships in 7-10 business days
1695812-12020-00BOLT, FLANGE$9.49$7.408 In-Stock
17B4J-F1249-00-00BRACKET$4.25$3.82Usually ships in 7-10 business days
1895812-12020-00BOLT, FLANGE$9.49$7.408 In-Stock
19BG4-F1143-10-00LUG, SEAT RAIL LH.$41.99$34.43Usually ships in 7-10 business days
2090105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
21BG4-F255G-01-00MEMBER, SEAT SUPPORT$36.99$30.33Usually ships in 7-10 business days
2290105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
23BG4-F287M-00-00BRACKET, LOCK 2$20.99$17.21Usually ships in 7-10 business days
2495817-10020-00

(replaces part #
95812-10020-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
25B4J-F110J-01-00

(replaces part #
B4J-F110J-00-00)

DAMPER BRACE ASSY$215.99$168.47Usually ships in 7-10 business days
2690105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
27B8K-F1446-00-00STAY, MUFFLER 2$3.05$2.74Usually ships in 7-10 business days
282MB-F198J-00-00COVER 3$4.90$4.41Usually ships in 7-10 business days
29JW1-K6179-01-00

(replaces part #
90119-06868-00)

BOLT, SPECIAL 1$1.75$1.5010+ In-Stock
305UG-F2417-00-00PLUG$7.49$5.8410+ In-Stock
31BYP-F1986-00-00

(replaces part #
B4J-F1986-00-00)

REINFORCEMENT, FRAME 1$233.99$182.51Usually ships in 7-10 business days
3290105-08867-00BOLT, FLANGE$1.95$1.765 In-Stock
33BG4-F8100-00-00TOOL KIT$24.99$20.49Usually ships in 7-10 business days
341XD-F811A-00-00GAUGE, AIR$7.49$6.74Usually ships in 7-10 business days
351P0-F8186-01-00POUCH$2.90$2.492 In-Stock
363VD-24188-00-00MOLD, FUEL TANK$41.99$34.43Usually ships in 7-10 business days
