2021 Yamaha Wolverine RMAX2 1000 Rear Arm OEM Parts Diagram

Submodel WOLVERINE RMAX 2 - YXE10WPAMW - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

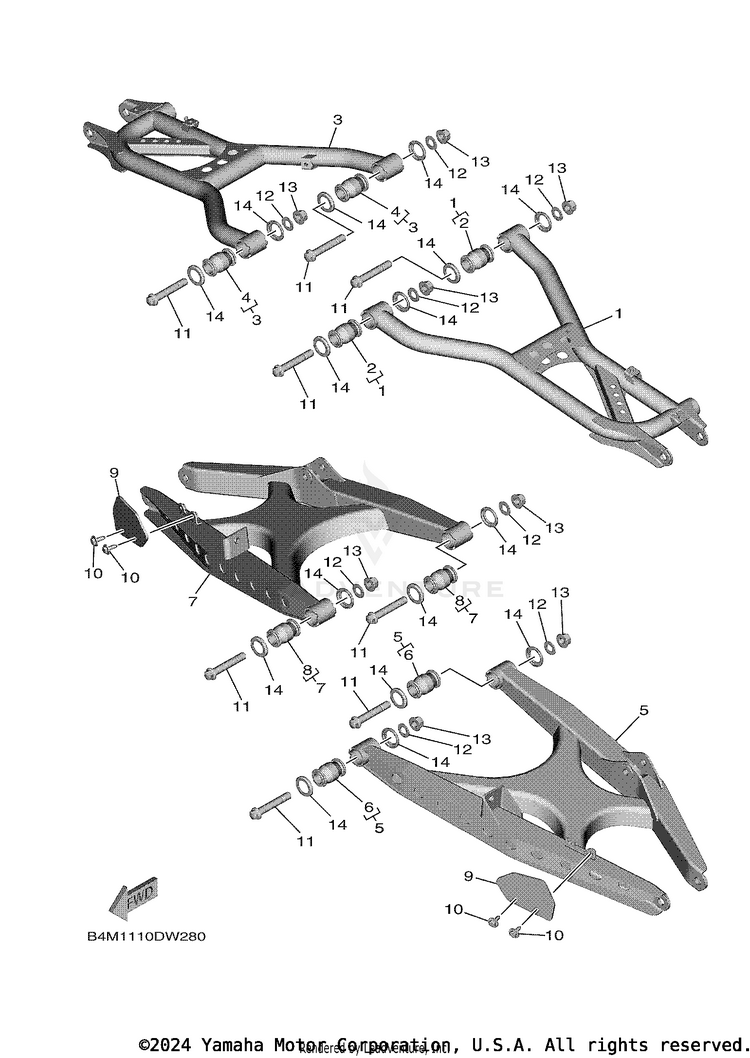

REAR ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4M-F2102-03-00RR. ARM ASSY$122.99$95.93Usually ships in 7-10 business days
2B4J-F3526-01-00BUSH$12.49$9.7410+ In-Stock
3B4M-F2103-03-00RR. ARM ASSY$123.99$96.71Usually ships in 7-10 business days
4B4J-F3526-01-00BUSH$12.49$9.7410+ In-Stock
5B4M-F210M-03-00REAR ARM ASS$193.99$151.31Usually ships in 7-10 business days
6B4J-F3526-01-00BUSH$12.49$9.7410+ In-Stock
7B4M-F210N-03-00REAR ARM ASS$193.99$151.31Usually ships in 7-10 business days
8B4J-F3526-01-00BUSH$12.49$9.7410+ In-Stock
92HC-F2128-10-00COVER, THRUST 1$6.49$5.064 In-Stock
1090119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1190105-12095-00BOLT, FLANGE$10.49$8.1810+ In-Stock
1290201-12045-00WASHER, PLATE$6.49$5.0610+ In-Stock
1390185-12002-00NUT, SELF-LOCKING$13.49$10.5210+ In-Stock
14B4J-F3517-00-00COVER, THRUST 1$1.45$1.2510+ In-Stock
