2023 Yamaha Kodiak 700 EPS 4X4 Front Brake Caliper OEM Parts Diagram

Submodel KODIAK 700 EPS HUNTI - YFM70KPHPF - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

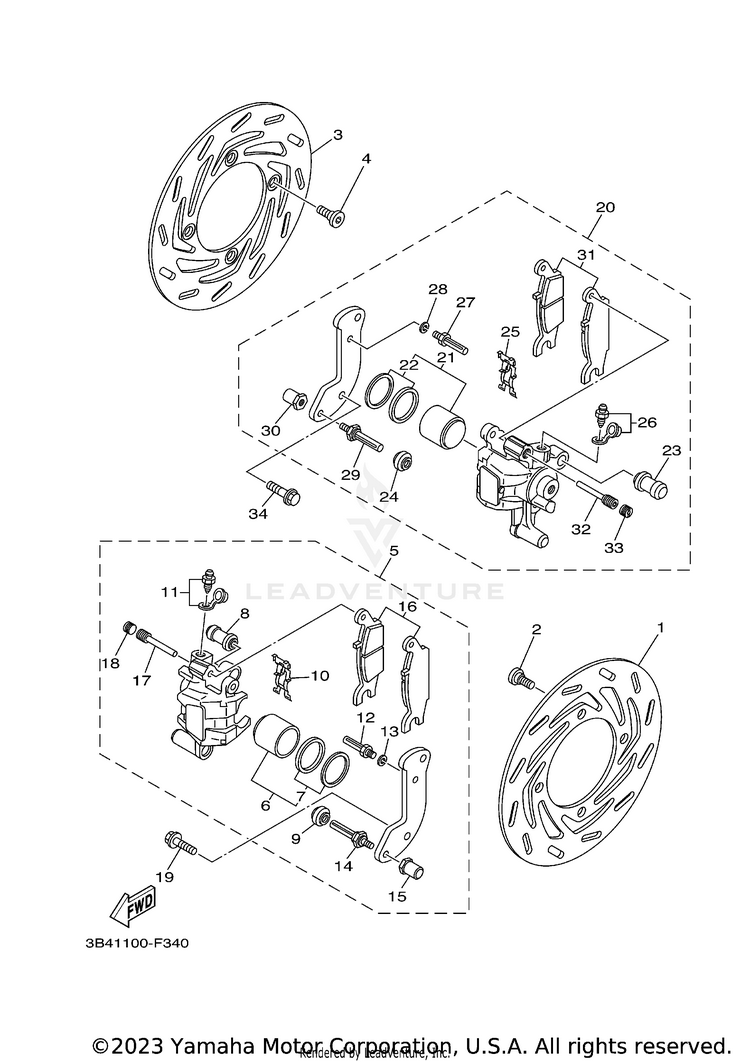

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11HP-F582T-00-00DISC, BRAKE (LEFT)$75.99$59.275 In-Stock
290109-08087-00

(replaces part #
90109-08101-00)

BOLT$3.15$2.7110+ In-Stock
31HP-F582T-00-00DISC, BRAKE (LEFT)$75.99$59.275 In-Stock
490109-08087-00

(replaces part #
90109-08101-00)

BOLT$3.15$2.7110+ In-Stock
53B4-2580T-02-00CALIPER ASSY (LEFT)$328.99$267.664 In-Stock
63B4-W0057-00-00PISTON ASSY, CALIPER$89.99$70.194 In-Stock
73B4-W0047-00-00CALIPER SEAL KIT$16.49$12.864 In-Stock
81UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
93JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
105DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
1136Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
121UY-25926-51-00BOLT$4.85$4.179 In-Stock
131UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
143JD-25926-00-00BOLT$8.49$6.628 In-Stock
153JD-25961-00-00NUT$9.49$7.40Not Shipping
163B4-W0045-00-00BRAKE PAD KIT$50.99$39.7710+ In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
175DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
185DH-25916-00-00PLUG$10.99$8.5710+ In-Stock
1990105-08161-00BOLT, FLANGE$8.49$6.628 In-Stock
203B4-2580U-02-00CALIPER ASSY (RIGHT)$328.99$256.615 In-Stock
213B4-W0057-00-00PISTON ASSY, CALIPER$89.99$70.194 In-Stock
223B4-W0047-00-00CALIPER SEAL KIT$16.49$12.864 In-Stock
231UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
243JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
255DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
2636Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
271UY-25926-51-00BOLT$4.85$4.179 In-Stock
281UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
293JD-25926-00-00BOLT$8.49$6.628 In-Stock
303JD-25961-00-00NUT$9.49$7.40Not Shipping
313B4-W0045-10-00BRAKE PAD KIT$50.99$39.778 In-Stock
325DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
335DH-25916-00-00PLUG$10.99$8.5710+ In-Stock
3490105-08161-00BOLT, FLANGE$8.49$6.628 In-Stock
