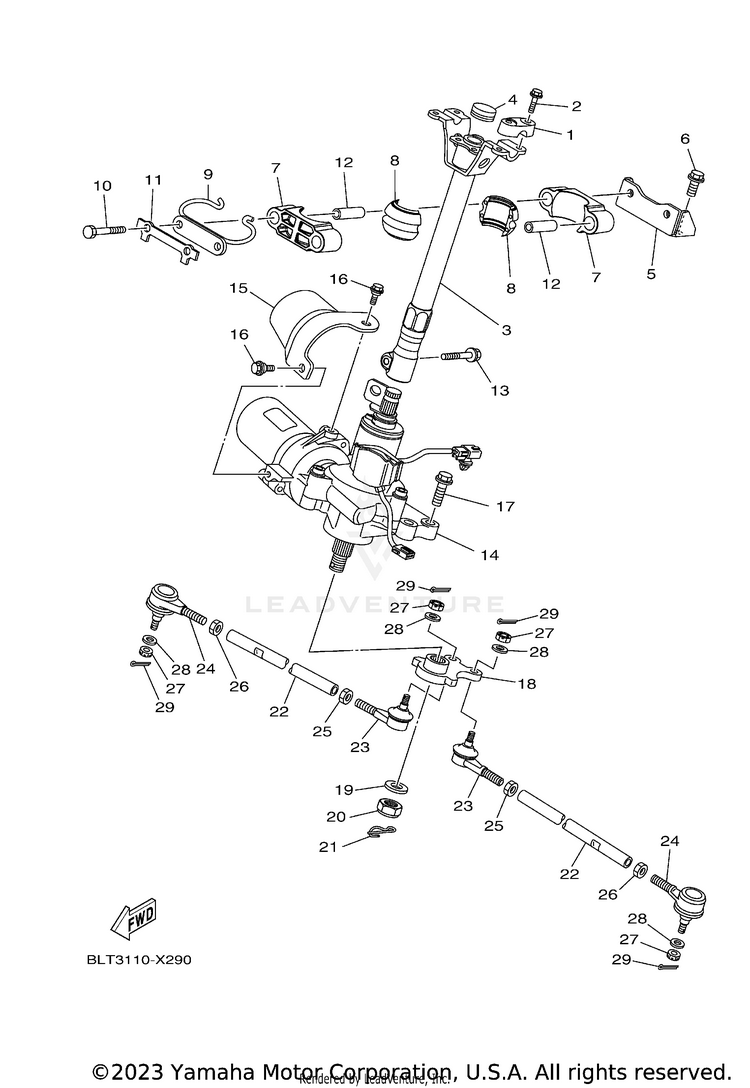

2023 Yamaha Kodiak 700 EPS 4X4 Steering OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1E6-23441-00-00 (replaces part # 8K1-23814-00-00)	HOLDER, HANDLE UPR (1E6-23441-0	$30.99	$24.17	10+ In-Stock
2	95812-08030-00	BOLT, FLANGE	$3.81	$3.28	5 In-Stock
3	1HP-F3813-10-00	COLUMN, STEERING 2	$192.99	$150.53	Usually ships in 7-10 business days
4	90336-28053-00	PLUG, TAPER	$11.49	$8.96	4 In-Stock
5	1HP-F2517-10-00	SUPT., STRG. COLUMN	$17.99	$14.75	Usually ships in 7-10 business days
6	90105-10876-00	BOLT, FLANGE	$1.35	$1.22	Usually ships in 7-10 business days
7	1CT-F1957-00-00	BRACKET, STEERING 2	$7.49	$5.84	2 In-Stock
8	1CT-F3812-00-00	BEARING, STEERING	$8.49	$6.62	4 In-Stock
9	1CT-F3868-00-00	BRACKET, STEERING LOWER	$6.49	$5.84	Usually ships in 7-10 business days
10	97012-08080-00	BOLT	$3.65	$3.28	Usually ships in 7-10 business days
11	1CT-F3894-00-00	WASHER, LOCK 1	$0.90	$0.81	Usually ships in 7-10 business days
12	1CT-F1545-01-00 (replaces part # 1CT-F1545-00-00)	PLATE 3	$3.85	$3.46	4 In-Stock
13	90109-08843-00	BOLT	$3.10	$2.79	Usually ships in 7-10 business days
14	3B4-238B0-43-00 (replaces part # 3B4-238B0-40-00)	POWER STRG. ACTUATOR ASSY	$2,738.99	$2,738.99	Usually ships in 7-10 business days
15	1HP-F38B6-00-00	COVER, MOTOR	$4.30	$3.87	Usually ships in 7-10 business days
16	90109-06043-00	BOLT	$3.00	$2.58	9 In-Stock
17	95812-08030-00 (replaces part # 90105-08153-00)	BOLT, FLANGE	$3.81	$3.28	5 In-Stock
18	2SM-F3816-00-00	ARM, PITMAN	$24.99	$20.49	Usually ships in 7-10 business days
19	90201-16021-00	WASHER, PLATE	$9.49	$7.40	4 In-Stock
20	95612-16100-00	NUT, U	$18.49	$15.16	Usually ships in 7-10 business days
21	91490-20035-00 (replaces part # 91402-20025-00)	PIN, COTTER (91401-20030-00)	$5.49	$4.28	9 In-Stock
22	5KM-23831-00-00	ROD, TIE	$28.99	$22.61	5 In-Stock
23	1UY-23841-01-00	JOINT, UNIVERSAL 1	$83.99	$65.51	7 In-Stock
	AFTERMARKET ALTERNATIVE	$29.99	$24.99	10+ In-Stock
24	1UY-23845-01-00	JOINT, UNIVERSAL 2	$83.99	$65.51	9 In-Stock
	AFTERMARKET ALTERNATIVE	$29.99	$24.99	10+ In-Stock
25	95380-10700-00 (replaces part # 95302-10700-00)	NUT	$6.49	$5.06	10+ In-Stock
26	90170-10010-00	NUT \| (L.H. THREAD)	$3.35	$2.88	10+ In-Stock
27	90171-10001-00	NUT, CASTLE	$3.55	$3.05	10+ In-Stock
28	90209-10229-00	WASHER	$8.49	$6.62	10+ In-Stock
29	91490-20025-00 (replaces part # 91401-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
