2023 Yamaha Kodiak 700 EPS 4X4 Intake OEM Parts Diagram

Submodel KODIAK 700 EPS HUNTI - YFM70KPHPF - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

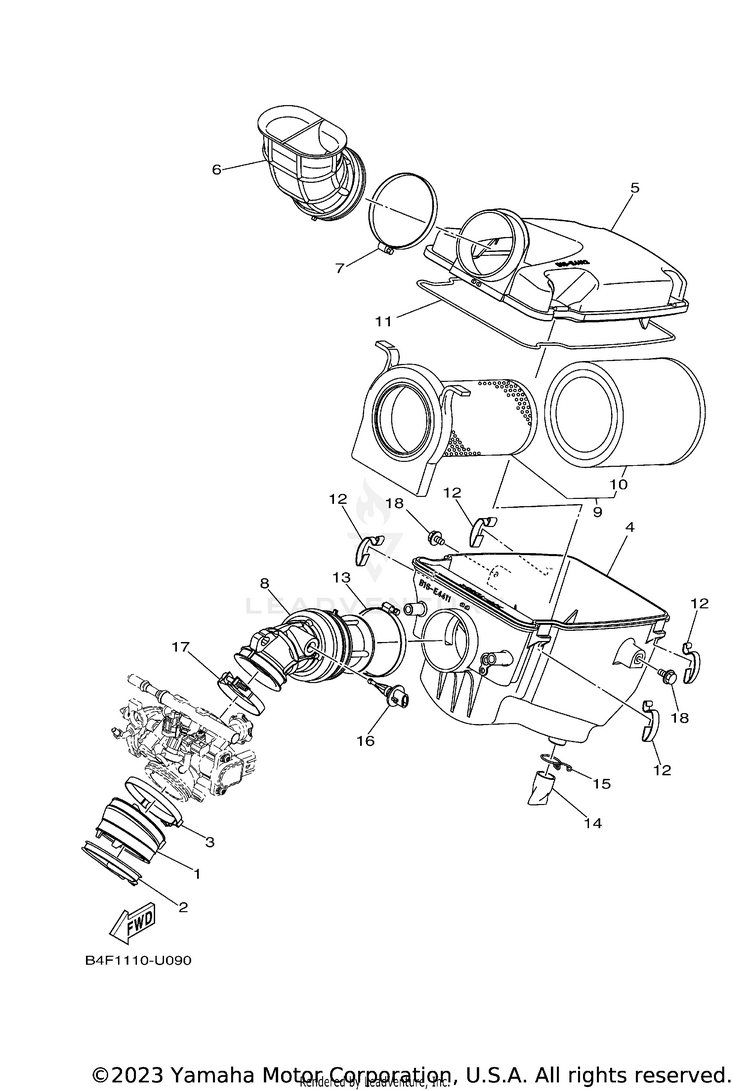

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15B4-13586-00-00JOINT, CARBURETOR 1$46.99$40.944 In-Stock
290450-72004-00HOSE CLAMP ASSY$20.99$16.376 In-Stock
390450-72004-00HOSE CLAMP ASSY$20.99$16.376 In-Stock
4B16-E4411-11-00CASE, AIR CLEANER$77.99$60.83Usually ships in 7-10 business days
5B16-E4412-01-00CAP,CLEANER CASE 1$31.99$26.23Usually ships in 7-10 business days
6B16-E4437-10-00DUCT$39.99$32.79Usually ships in 7-10 business days
7B16-E4455-00-00BAND$7.49$6.74Usually ships in 7-10 business days
8B4F-E4453-01-00JOINT,AIR CLNR 1$39.99$32.79Usually ships in 7-10 business days
9BVG-E4450-00-00

(replaces part #
B16-E4450-01-00)

ELEMENT ASSY, AIR CLEANER$46.99$43.415 In-Stock
10BVG-E4451-00-00

(replaces part #
B16-E4451-01-00)

. .ELEMENT, AIR CLEANER-$40.0110+ In-Stock
11B16-E4457-00-00SEAL$7.99$6.233 In-Stock
12B16-E4424-00-00CLIP, CAP FITTING$3.70$3.1810+ In-Stock
13B16-E4456-00-00BAND$7.49$6.74Usually ships in 7-10 business days
14B16-E443E-00-00PIPE, DRAIN$3.49$3.004 In-Stock
1590467-220A1-00CLIP$6.49$5.0610+ In-Stock
165VU-85886-00-00SENSOR, AIR TEMPRATURE$62.99$49.131 In-Stock
1790450-62006-00HOSE CLAMP ASSY$13.49$10.528 In-Stock
1895812-06010-00BOLT, FLANGE$5.49$4.2810+ In-Stock
