HANDLE SWITCH & LEVER

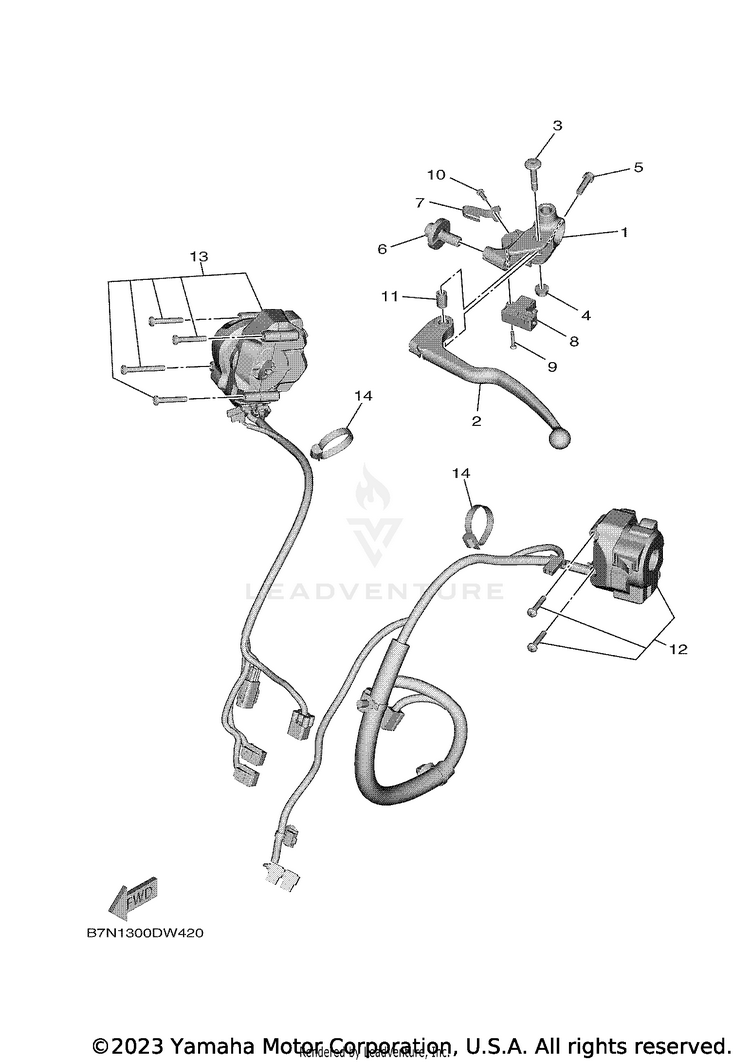

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11B3-82911-00-00HOLDER, LEVER 1$44.99$35.094 In-Stock
25EB-83912-03-00LEVER 1$59.99$46.794 In-Stock
32C0-83945-00-00BOLT, LEVER$11.99$9.355 In-Stock
495604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
595027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
65LV-83951-00-00BOLT, CABLE ADJUSTING$63.99$49.91Usually ships in 7-10 business days
74XV-83929-00-00PLATE, SPRING$12.99$10.65Usually ships in 7-10 business days
83YX-82917-01-00SWITCH$47.99$37.434 In-Stock
990151-03003-00

(replaces part #
98704-03020-00)

SCREW, COUNTERSUNK$6.99$5.4510+ In-Stock
1098507-04010-00SCREW, PAN HEAD$3.65$3.1410+ In-Stock
115JJ-83913-00-00COLLAR, LEVER 1$9.49$7.4010+ In-Stock
12B7N-83969-01-00SWITCH, HANDLE 5$215.99$168.47Usually ships in 7-10 business days
13B7N-8291R-13-00

(replaces part #
B7N-8291R-11-00)

SW., HANDLE RH$379.99$316.11Usually ships in 7-10 business days
1490464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (125.0x7.0)$4.41$3.7910+ In-Stock
