2023 Yamaha MT-09 Side Cover OEM Parts Diagram

Submodel MT09 - MT09PCB - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

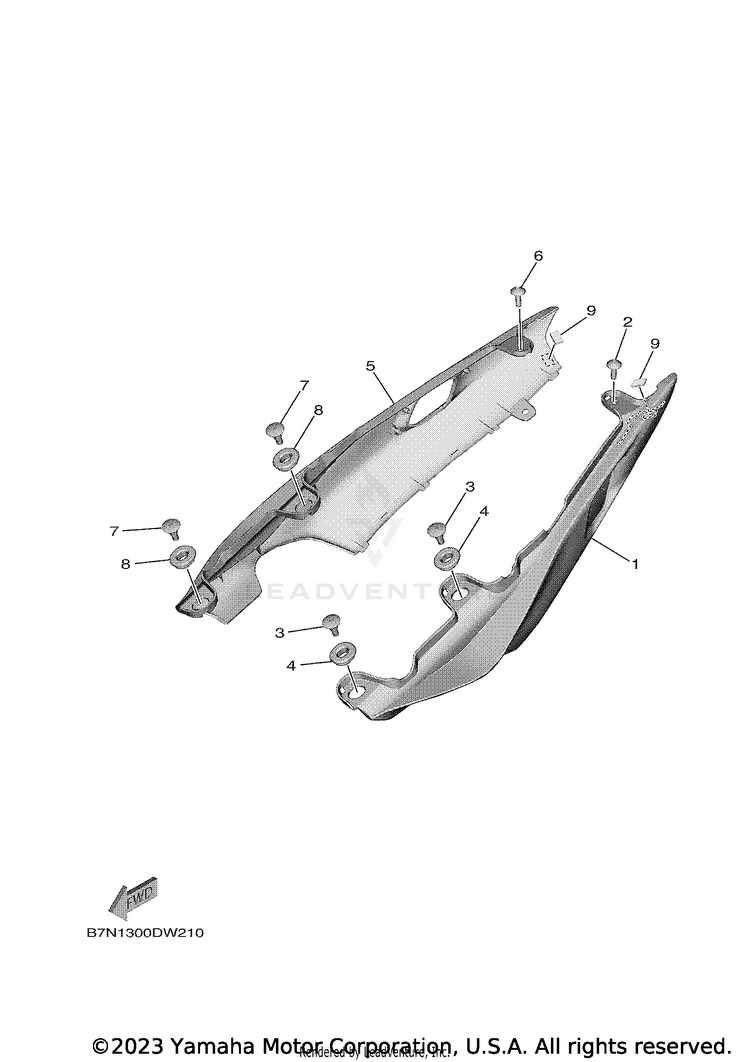

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-21711-00-00COVER, SIDE 1$16.49$13.52Usually ships in 7-10 business days
290111-05021-00BOLT, HEX. SOCKET BUTTON$6.49$5.069 In-Stock
390109-06336-00BOLT$2.25$2.024 In-Stock
490480-01559-00GROMMET$6.49$5.0610+ In-Stock
5B7N-21721-00-00COVER, SIDE 2$16.49$13.52Usually ships in 7-10 business days
690111-05021-00BOLT, HEX. SOCKET BUTTON$6.49$5.069 In-Stock
790109-06336-00BOLT$2.25$2.024 In-Stock
890480-01559-00GROMMET$6.49$5.0610+ In-Stock
92C0-21669-00-00SEAL$7.49$6.74Usually ships in 7-10 business days
