2023 Yamaha MT-09 Starting Motor OEM Parts Diagram

Submodel MT09 - MT09PCB - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

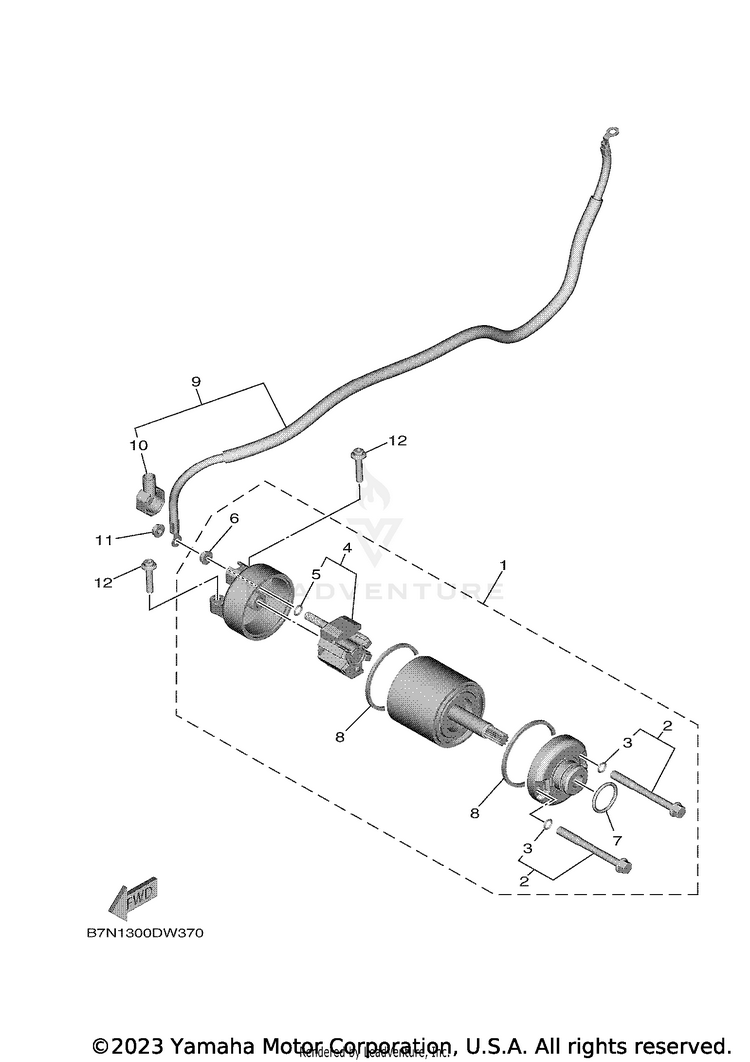

STARTING MOTOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BFD-81890-00-00

(replaces part #
B7N-81890-00-00)

MOTOR ASSY$265.99$219.30Usually ships in 7-10 business days
228P-81826-00-00BOLT$15.99$13.11Usually ships in 7-10 business days
33TB-81847-00-00O-RING$2.49$2.14Not Shipping
44B5-81840-00-00BRUSH HOLDER ASSY$107.99$84.23Usually ships in 7-10 business days
53TB-81847-00-00O-RING$2.49$2.14Not Shipping
64XV-8182A-00-00NUT$8.49$6.626 In-Stock
793210-24235-00

(replaces part #
1FK-81847-00-00)

O-RING$8.49$7.078 In-Stock
835C-81844-00-00

(replaces part #
11H-81844-00-00)

GASKET$53.99$42.11Usually ships in 7-10 business days
9B7N-81815-10-00CORD, STARTER MOTO$39.99$32.79Usually ships in 7-10 business days
104B5-81871-00-00CAP$11.49$9.42Usually ships in 7-10 business days
114XV-8182A-00-00NUT$8.49$6.626 In-Stock
1290110-06388-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
