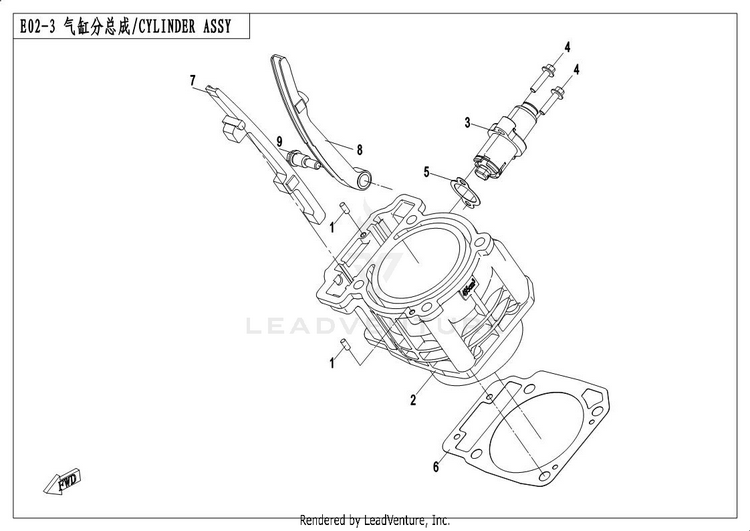

2017 CFMOTO UFORCE 500 Cylinder Assy OEM Parts Diagram
Submodel UFORCE 500 CF500UU 2017 Crystal Orange
CYLINDER ASSY
