Assemblies

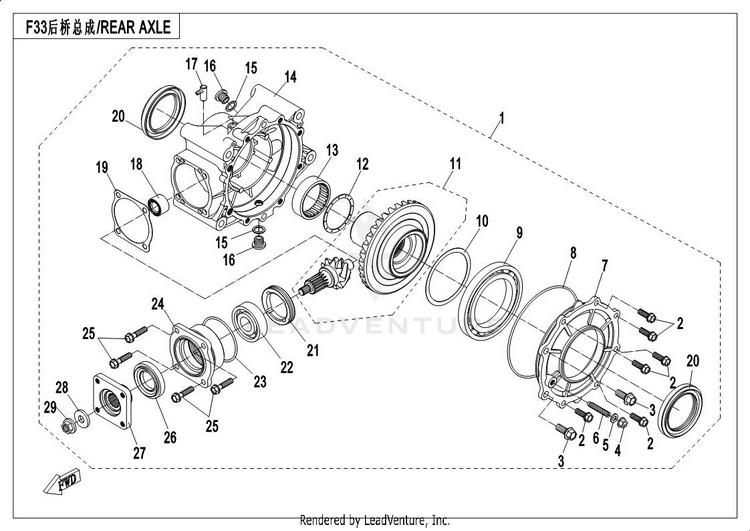

2017 CFMOTO UFORCE 500 Rear Differential OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Crystal Orange

Shop Aftermarket Parts

REAR DIFFERENTIAL

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	Q530-330000-10001	REAR DIFFERENTIAL	Usually ships in 7-10 business days
2	30008-080025810	BOLT M8Ã—25	Usually ships in 7-10 business days
3	30001-102025810	BOLT	Usually ships in 7-10 business days
4	0180-334006-0010	NUT M8	Usually ships in 7-10 business days
5	0180-334004	WASHER 8.2Ã—15Ã—1.5	Usually ships in 7-10 business days
6	0180-334005-0010	BOLT	Usually ships in 7-10 business days
7	0180-334001-0080	REAR GEAR BEARING HOUSING	Usually ships in 7-10 business days
8	0180-334002	O-RING 151Ã—3	Usually ships in 7-10 business days
9	30499-08500	BEARING 16017	Usually ships in 7-10 business days
10	0180-330002-0002	ADJUST SHIM 100Ã—86Ã—0.4 \| ADJUSTING WASHER 100Ã—86Ã—0.4	Usually ships in 7-10 business days
10	0180-330002-0001	ADJUST SHIM 100Ã—86Ã—0.3 \| ADJUSTING WASHER 100Ã—86Ã—0.3	Usually ships in 7-10 business days
10	0180-330002	ADJUST SHIM 100Ã—86Ã—0.2 \| ADJUSTING WASHER 100Ã—86Ã—0.2	Usually ships in 7-10 business days
11	Q510-330010-00001	BEVEL GEAR COMP,REAR AXLE	Usually ships in 7-10 business days
12	0180-330001	ADJUST SHIM 1.0 \| ADJUSTING WASHER(1)1.0	Usually ships in 7-10 business days
12	0180-330001-0003	ADJUST SHIM 1.6 \| ADJUSTING WASHER(1)1.6	Usually ships in 7-10 business days
12	0180-330001-0004	ADJUST SHIM 1.8 \| ADJUSTING WASHER(1)1.8	Usually ships in 7-10 business days
12	0180-330001-0001	ADJUST SHIM 1.2 \| ADJUSTING WASHER(1)1.2	Usually ships in 7-10 business days
12	0180-330001-0002	ADJUST SHIM 1.4 \| ADJUSTING WASHER(1)1.4	Usually ships in 7-10 business days
13	30404-05500	BEARING 55BTM6720A	Usually ships in 7-10 business days
14	Q530-332001	CASE, REAR AXLE	Usually ships in 7-10 business days
15	0180-011006	WASHER 14	10+ In-Stock
16	0180-021008-00001	BOLT M14Ã—1.25Ã—12	6 In-Stock
17	0180-332006	PIPE JOINT	Usually ships in 7-10 business days
18	30403-01700	BEARING NA5903(17X30X18)	Usually ships in 7-10 business days
19	0180-330003-0001	ADJUST SHIM 0.6 \| ADJUST GASKET 0.6	Usually ships in 7-10 business days
19	0180-330003-0002	ADJUST SHIM 0.4 \| ADJUST GASKET 0.4	Usually ships in 7-10 business days
19	0180-330003	ADJUST SHIM 0.5 \| ADJUST GASKET 0.5	Usually ships in 7-10 business days
20	0180-334003	OIL SEAL SD465Ã—90Ã—9NS	Usually ships in 7-10 business days
21	Q510-331003	BEARING RETAINER	Usually ships in 7-10 business days
22	30499-02501	BALL BEARING 6305	Usually ships in 7-10 business days
23	0180-331004	OIL-SEAL64.5Ã—3	Usually ships in 7-10 business days
24	Q510-331001	BEARING SEAT, REAR AXLE	Usually ships in 7-10 business days
25	30008-080035810	BOLT M8Ã—35	Usually ships in 7-10 business days
26	0180-331007	OIL SEAL 35X61X9	Usually ships in 7-10 business days
27	Q510-331004-1000	COUPLER	Usually ships in 7-10 business days
28	0180-331008-0050	WASHER 12.5Ã—30Ã—4	Usually ships in 7-10 business days
29	0180-331009-0020	NUT M12x1.25	Usually ships in 7-10 business days
