2017 CFMOTO UFORCE 500 Front Suspension OEM Parts Diagram

Submodel UFORCE 500 CF500UU 2017 Crystal Orange

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION

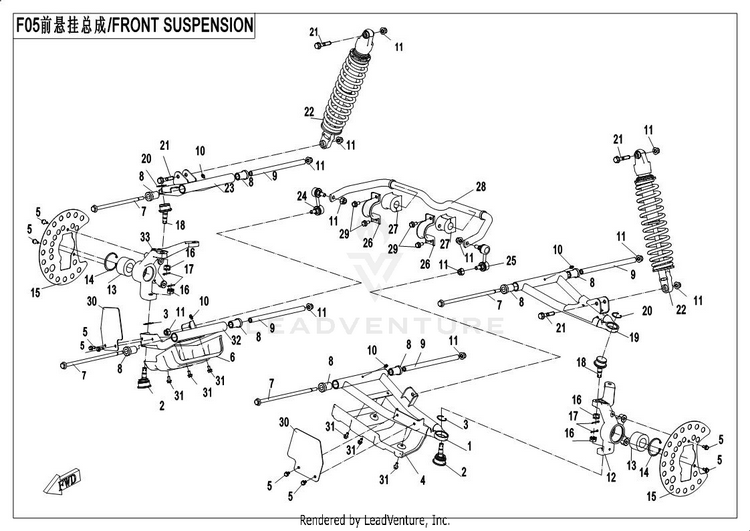

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1703V-050210-1500

(replaces part #
703A-050210)

FRONT LOWER SWING ARM ASSY, LH
Usually ships in 7-10 business days
29060-050900-10000BALL PIN COMP.
5 In-Stock
330801-03405RETAINER 34
10+ In-Stock
47030-040721COVER,FRONT ARM(LH)
Usually ships in 7-10 business days
530006-060012870BOLT M6x12
10+ In-Stock
67030-040731GUARD FRONT ARM(RH)
Usually ships in 7-10 business days
74060-050101SHAFT,FRONT ARM
Usually ships in 7-10 business days
89060-050002LONG BUSH,SUSPENSION ARM
2 In-Stock
99060-050101-00002MIDDLE SPACER, FRONT SWING ARM
Usually ships in 7-10 business days
103121401GREASE ZERK M6 | M6,45 DEGREE
10+ In-Stock
1130204-102810NUT M10x1.25
10+ In-Stock
12703A-050001FRONT STEERING KNUCKLE,LH
Usually ships in 7-10 business days
139GQ0-050710BEARING, HUB
4 In-Stock
1430800-05505RETAINER 55
10+ In-Stock
157030-050003GUARD,FRONT BRAKE DISC
Usually ships in 7-10 business days
1630219-122810NUT M12×1.25
10+ In-Stock
1730903-0322210COTTER PIN
10+ In-Stock
189030-050600-10000BALL PIN COMP.
5 In-Stock
19703A-050110FRONT UPPER A-ARM,LH
Usually ships in 7-10 business days
2030801-03205RETAINER 32
4 In-Stock
2130006-102055810BOLT M10X1.25X55
Usually ships in 7-10 business days
22703A-050500FRONT SHOCK ABSORBER
Usually ships in 7-10 business days
23703A-050310FRONT UPPER A-ARM,RH
Usually ships in 7-10 business days
249010-060700-20000

(replaces part #
9010-060700-1000)

SWAY BAR LINK (LH)
Usually ships in 7-10 business days
259DQV-060800-3000-M2

(replaces part #
9010-060800-20000)

SWAY BAR LINK (RH)
Usually ships in 7-10 business days
269030-060002RETAINING COVER
Usually ships in 7-10 business days
279030-060003RUBBER SUPPORT
Usually ships in 7-10 business days
287030-050610FRONT STABILIZER BAR
Usually ships in 7-10 business days
2930006-080016810BOLT M8X16
10+ In-Stock
30703A-050201GUARD
Usually ships in 7-10 business days
3130006-060016870BOLT M6x16
10+ In-Stock
32703V-050410-1500

(replaces part #
703A-050410-10000)

FRONT LOWER SWING ARM,RH
Usually ships in 7-10 business days
33703A-050002FRONT STEERING KNUCKLE,RH
Usually ships in 7-10 business days
