TRANSMISSION (2)

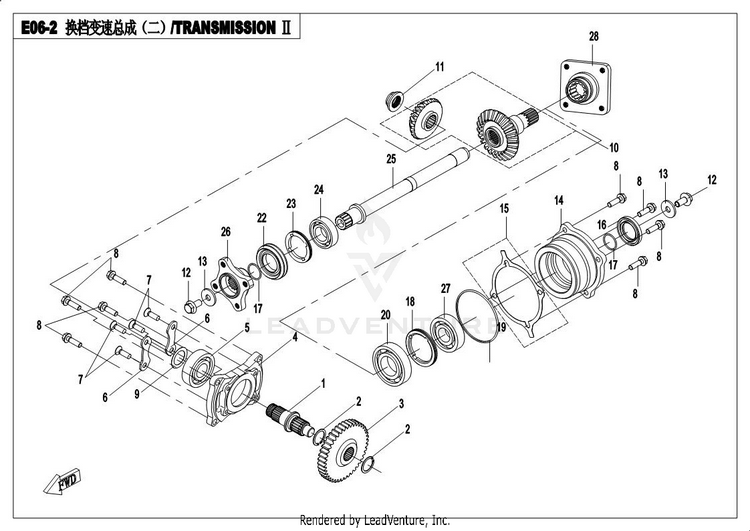

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10180-062101DRIVE BEVEL GEAR SHAFT
Usually ships in 7-10 business days
20180-061007-0050RETAINER 25
Usually ships in 7-10 business days
30180-062102-00001

(replaces part #
0180-062102)

OUTPUT DRIVEN GEAR
Usually ships in 7-10 business days
40180-062103-10000BEARING SEAT,DRIVE BEVEL GEAR
Usually ships in 7-10 business days
530499-02501BALL BEARING 6305
Usually ships in 7-10 business days
60180-062104-0010LIMITATOR, BEARING
Usually ships in 7-10 business days
730124-080025810SCREW M8×25
Usually ships in 7-10 business days
80JYA-062104BOLT
Usually ships in 7-10 business days
90180-062105ADJUST SHIM, DRIVE BEVEL GEAR | t=0.15
Usually ships in 7-10 business days
100GR0-0622A0DRIVE&DRIVENBEVELGEARCOMP
Usually ships in 7-10 business days
110180-062107-00001LOCK NUT, BEVEL GEAR
Usually ships in 7-10 business days
120GR0-062203BOLTM10×1.25×20
Usually ships in 7-10 business days
130GR0-062204WASHER10×27.5×4
Usually ships in 7-10 business days
140800-062202-10002

(replaces part #
0800-062202-10001)

DRIVEN BEVEL GEAR BEARING HOUSING
Usually ships in 7-10 business days
150800-062203ADJUST SHIM, DRIVEN BEVEL GEAR | t=0.1
Usually ships in 7-10 business days
160800-062204OIL SEAL 35×50×7
6 In-Stock
170800-062205O-RING 25×2
5 In-Stock
180800-062206STOPPER NUT, BEARING
Usually ships in 7-10 business days
190180-062205O-RING 88×2.5
Usually ships in 7-10 business days
2030400-03500BALL BEARING 6207c3
Usually ships in 7-10 business days
220JWA-062302-00001

(replaces part #
0JWA-062302)

OIL SEAL
4 In-Stock
230180-060008RETAINER, BEARING
Usually ships in 7-10 business days
2430400-02501BALL BEARING 6025
Usually ships in 7-10 business days
2430400-02501?BALL BEARING 6025
Usually ships in 7-10 business days
250GR0-062301-10001FRONT OUTPUT SHAFT ASSY
Usually ships in 7-10 business days
260GR0-060003COUPLER
Usually ships in 7-10 business days
2730400-02502BEARING,BALL
Usually ships in 7-10 business days
280GR0-062202COUPLER, REAR TRANSMISSION OUTPUT
Usually ships in 7-10 business days
