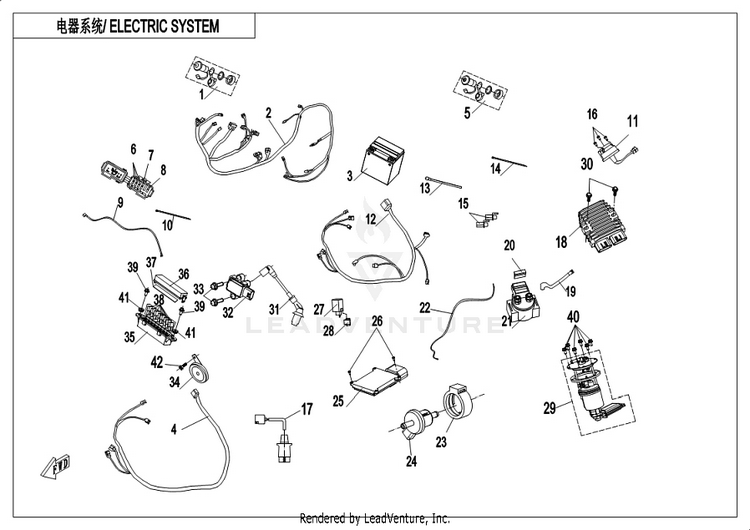

2019 CFMOTO CFORCE 400 Electric System(With Fuel Vaporization System) OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2019 Crystal Orange

Shop Aftermarket Parts

ELECTRIC SYSTEM(WITH FUEL VAPORIZATION SYSTEM)

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	9GQ0-150500-10000	OUTPUT SEAT,POWER	Usually ships in 7-10 business days
2	9GQ0-150100-00001	MAIN WIRE HARNESS	Usually ships in 7-10 business days
3	31023004	BATTERY, Dynavolt 12v30ah \| YUASA,Y1X30L-BS,	2 In-Stock
4	9GQ0-150120	LINK CABLE, FOG LIGHT	Usually ships in 7-10 business days
5	9GQ0-150600-10000 (replaces part # 9GQ0-150600)	OUTPUT SEAT, USB	Usually ships in 7-10 business days
6	806A-151305	FUSE (15A)	Usually ships in 7-10 business days
7	806A-151302	FUSE (10A)	Usually ships in 7-10 business days
8	8080-151301	FUSE (5A)	Usually ships in 7-10 business days
9	9GQ0-150230-10000 (replaces part # 9GQ0-150230)	NEGATIVE WIRE,BATTERY	Usually ships in 7-10 business days
10	8010-150003	TIE BAND	Usually ships in 7-10 business days
11	7020-150800	POWER SOCKET,TRAILER	Usually ships in 7-10 business days
12	9GQ0-150300-00001	AUXILIARY CABLE, EFI	Usually ships in 7-10 business days
13	9010-150005	CABLE CLIP	Usually ships in 7-10 business days
14	9010-150004	TIE BAND	Usually ships in 7-10 business days
15	6090-150500	DIODE, STARTER	Usually ships in 7-10 business days
16	30105-050030410	SCREW M5x30 \| M5Ã—30	Usually ships in 7-10 business days
17	9010-151020-20000	ADAPTER, TRAILER POWER	Usually ships in 7-10 business days
18	0800-177000-10000	REGULATOR	Usually ships in 7-10 business days
19	9GQ0-150210-10000	POSITIVE WIRE,BATTERY	Usually ships in 7-10 business days
20	7020-150111	CHIP-TYPE FUSE(30A)	Usually ships in 7-10 business days
21	9CR6-150310	STARTER RELAY	Usually ships in 7-10 business days
22	9GQ0-150220	CABLE,STARTING MOTOR	Usually ships in 7-10 business days
23	901F-000005	IDLE VALVE RUBBER CAP	Usually ships in 7-10 business days
24	6KJB-1550A0 (replaces part # 018B-172000)	IDLE CONTROL VALVE ASSY	Usually ships in 7-10 business days
25	0GQ0-174000	ECU	Usually ships in 7-10 business days
26	30110-480160010	TAPPING SCREW ST4.8X16	10+ In-Stock
27	8010-151000	FLASHER	Usually ships in 7-10 business days
28	8010-150002	CUSHION, FLASHER	Usually ships in 7-10 business days
29	901F-150900-10000	FUEL PUMP	Usually ships in 7-10 business days
30	30006-060030810	BOLT M6Ã—30	Usually ships in 7-10 business days
31	0GRB-178000-10000	HIGH-TENSION CABLE	Usually ships in 7-10 business days
32	018B-178000	IGNITION COIL	Usually ships in 7-10 business days
33	30006-060025810	BOLT \| M6X25	10+ In-Stock
34	5020-150700	ELECTRIC HORN	Usually ships in 7-10 business days
35	7020-040411	RELAY BOX	Usually ships in 7-10 business days
36	7020-040412-10000	COVER,RELAY BOX	Usually ships in 7-10 business days
37	7020-040414	RUBBER MAT,RELAY BOX COVER	Usually ships in 7-10 business days
38	9010-150350	AUXILIARY RELAY	Usually ships in 7-10 business days
39	30006-060016870	BOLT M6x16 \| M6Ã—16	10+ In-Stock
40	30006-050014810	BOLT M5X14	Usually ships in 7-10 business days
41	0180-015003	RUBBER COLLAR	Usually ships in 7-10 business days
42	30006-080014810	BOLT M8X14	10+ In-Stock
