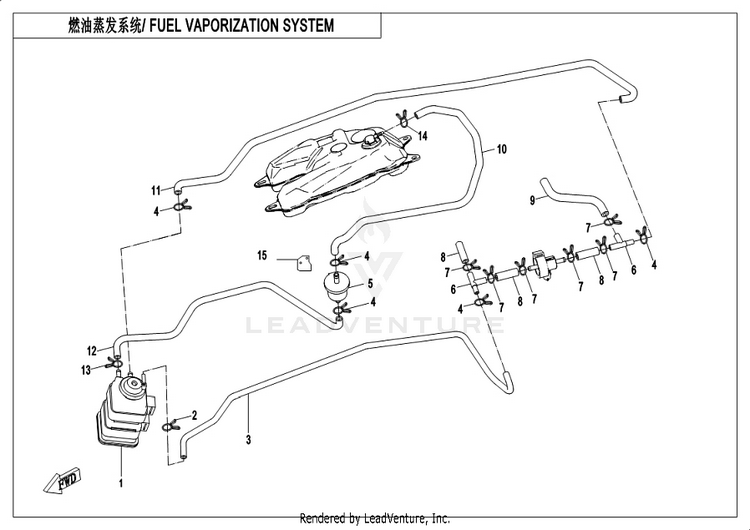

2019 CFMOTO CFORCE 400 Fuel Vaporization System OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	A000-360200	CANISTER	Usually ships in 7-10 business days
2	30601-109510	CLAMP A9.5	Usually ships in 7-10 business days
3	9GQ0-360001	VACUUM PIPE, FUEL	Usually ships in 7-10 business days
4	30601-111210	CLAMP A11.2	Not Shipping
5	9GQ0-360100	TWO-WAY VALVE	Usually ships in 7-10 business days
6	0110-013019	T-JOINT, EXHAUST	Usually ships in 7-10 business days
7	30601-113010	CLAMP A13	Usually ships in 7-10 business days
8	9GQ0-001008	AIR OUTLET PIPE, IDLE VALVE	Usually ships in 7-10 business days
9	9GQ0-001007	AIR INLET PIPE, IDLE SPEED	Usually ships in 7-10 business days
10	9GQ0-360004	VAPOR TUBE 2, FUEL	Usually ships in 7-10 business days
11	9GQ0-360003	VAPOR TUBE I, FUEL	Usually ships in 7-10 business days
12	9GQ0-360005	VAPOR TUBE III, FUEL	Usually ships in 7-10 business days
13	30601-110010	CLAMP A10	4 In-Stock
14	30601-112010	CLAMP A12	Usually ships in 7-10 business days
15	9GQ0-030006	BRACKET, TWO WAY VALVE	Usually ships in 7-10 business days
