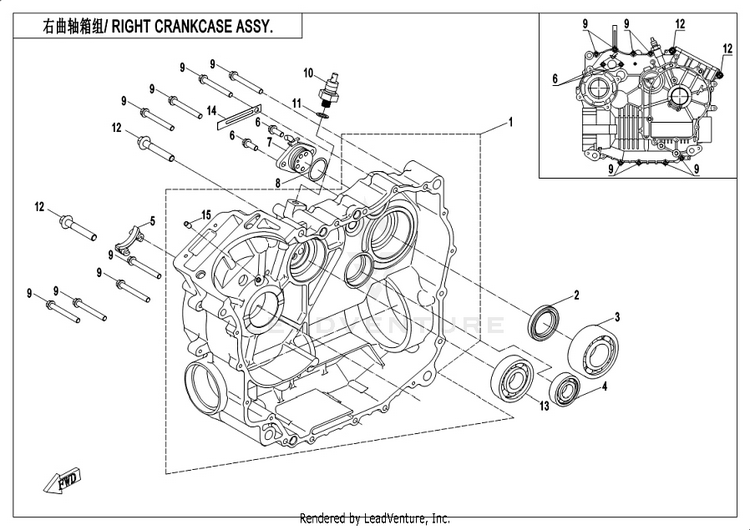

2019 CFMOTO CFORCE 400 Right Crankcase Assy OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0GR0-012100-10000	RH CRANKCASE	Usually ships in 7-10 business days
2	0180-012006-10000 (replaces part # 0180-012006-00001)	OIL SEAL	4 In-Stock
3	30499-03000	BEARING 3206A	Usually ships in 7-10 business days
4	30400-01704	BEARING 6203	Usually ships in 7-10 business days
5	0800-011007	UPPER GUIDE, TIMING CHAIN	Usually ships in 7-10 business days
6	0010-090005-0010	BOLT M6Ã—16	Usually ships in 7-10 business days
7	0800-012200	SENSOR, GEARSHIFT, WHITE CONNECTOR	Usually ships in 7-10 business days
8	0180-023002	O-RING 24Ã—2.5	5 In-Stock
9	0010-013010-0010	BOLT M6Ã—50	Usually ships in 7-10 business days
10	0800-0124A0	OIL PRESSURE SWITCH WITH CONVERSION CABLE	1 In-Stock
11	0010-060010	WASHER 10	10+ In-Stock
12	0040-012006-0010	BOLT M8Ã—50	Usually ships in 7-10 business days
13	30400-02201	ROLLING BEARING	Usually ships in 7-10 business days
14	0180-014010	WIRE CLAMP	Not Shipping
15	01A0-011003	NOZZLE	Usually ships in 7-10 business days
