2019 CFMOTO CFORCE 400 Gear Shifting OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2019 Crystal Orange

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

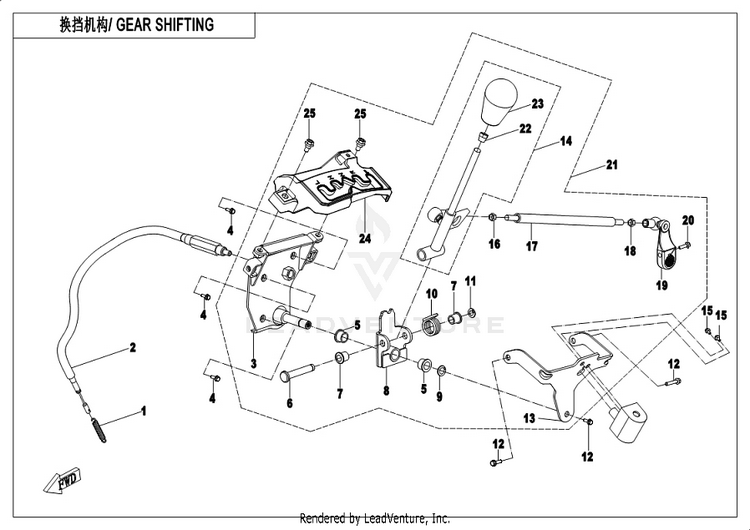

GEAR SHIFTING

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
39GQ0-321100BASE PLATE
Usually ships in 7-10 business days
430006-080016810BOLT M8X16
10+ In-Stock
59CR6-321003BUSHING, ARM
2 In-Stock
69CR6-321001-00001PIN SHAFT, GEARSHIFT LEVER
2 In-Stock
79010-320009NYLON BUSHING
4 In-Stock
89CR6-321200GEARSHIFT ARM ASSY
Usually ships in 7-10 business days
930802-00805“E� RING
Usually ships in 7-10 business days
109CR6-321002SPRING, GEARSHIFT LEVER
Usually ships in 7-10 business days
1130802-00603CIRCLIP 6
Usually ships in 7-10 business days
1230006-060016870BOLT M6x16 | M6×16
10+ In-Stock
139GQ0-321003FIXING PLATE,LOCK
Usually ships in 7-10 business days
149GQ0-321300SHIFTING LEVER ASSY
Usually ships in 7-10 business days
1530107-060012410SCREW M6X12
Usually ships in 7-10 business days
1630200-060810NUT | M6
4 In-Stock
179GQ0-321004GEARSHIFT ROD
Usually ships in 7-10 business days
1830200-06081LNUT | M6
Usually ships in 7-10 business days
199010-320200-2000ROCKER, GEARSHIFT
Usually ships in 7-10 business days
200010-080013-0010BOLT M6×22
10+ In-Stock
219GQ0-321000-10000

(replaces part #
9GQ0-321000)

GEARSHIFT ASSY
Usually ships in 7-10 business days
229CR6-321301LOCK NUT,GEARSHIFT | M8
Usually ships in 7-10 business days
239CR6-321320KNOB, GEARSHIFT
Usually ships in 7-10 business days
249GQ0-321001LIMITATOR, GEARSHIFT
Usually ships in 7-10 business days
258010-000004BOLT M6×14
10+ In-Stock
