Evaporative Canister

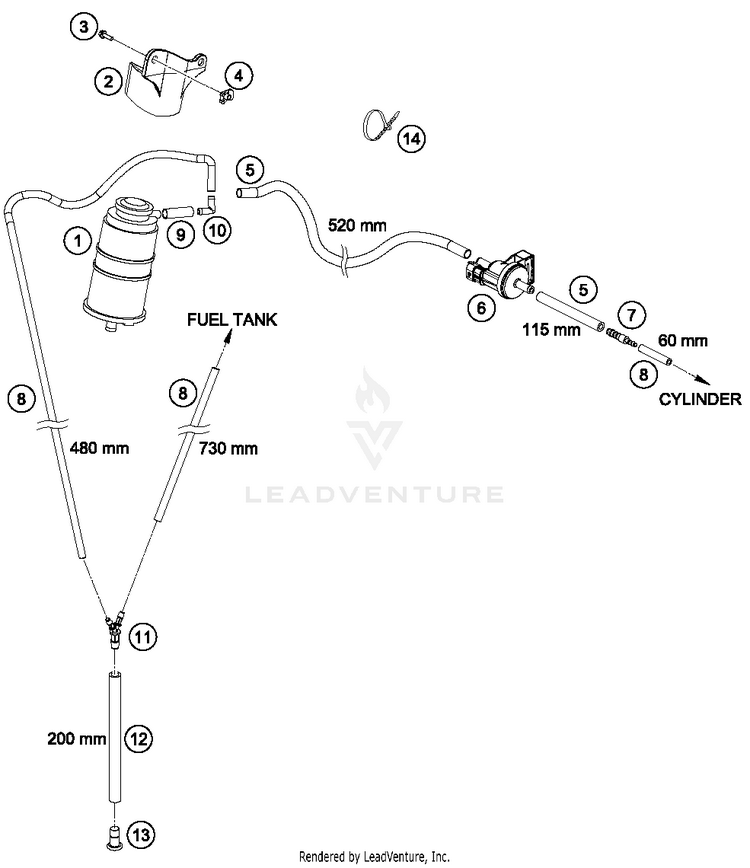

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
159415001100EVAPORATIVE CANISTER 08$38.71$32.90Usually ships in 7-10 business days
227015001040FASTENER CARBON CANISTER$10.33$8.78Usually ships in 7-10 business days
369008021160special screw M5x12$4.99$4.2410+ In-Stock
469008021080clip nut M5$3.99$3.3910+ In-Stock
578015019000HOSE EPA D=6/10 L=2000MM$73.69$62.64Usually ships in 7-10 business days
676015015000EVAP valve$299.74$254.78Usually ships in 7-10 business days
775015023000REDUCTION CONNECTION GRS6-4$6.59$5.93Usually ships in 7-10 business days
878015021000HOSE EPA D=4/8 L=2000MM$58.73$49.92Usually ships in 7-10 business days
927015025000HOSE AKF$26.39$22.43Usually ships in 7-10 business days
1027015024000PIPE 90¦$21.00$17.85Usually ships in 7-10 business days
1161315025133

(replaces part #
61315028000)

HOSE TANK BREAT.-AKF$144.09$122.48Usually ships in 7-10 business days
1278015119000HOSE EPA D=10/16 L=2000MM$287.20$244.12Usually ships in 7-10 business days
1361315026100

(replaces part #
61315026000)

Screw plug ACF$25.73$21.87Usually ships in 7-10 business days
1444011076140CABLE TIE 140/2,5MM BLACK$1.99$1.6910+ In-Stock
