2017 Husqvarna 701 ENDURO Handlebar, Controls OEM Parts Diagram

Submodel 701 ENDURO CHASSIS- 2017

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

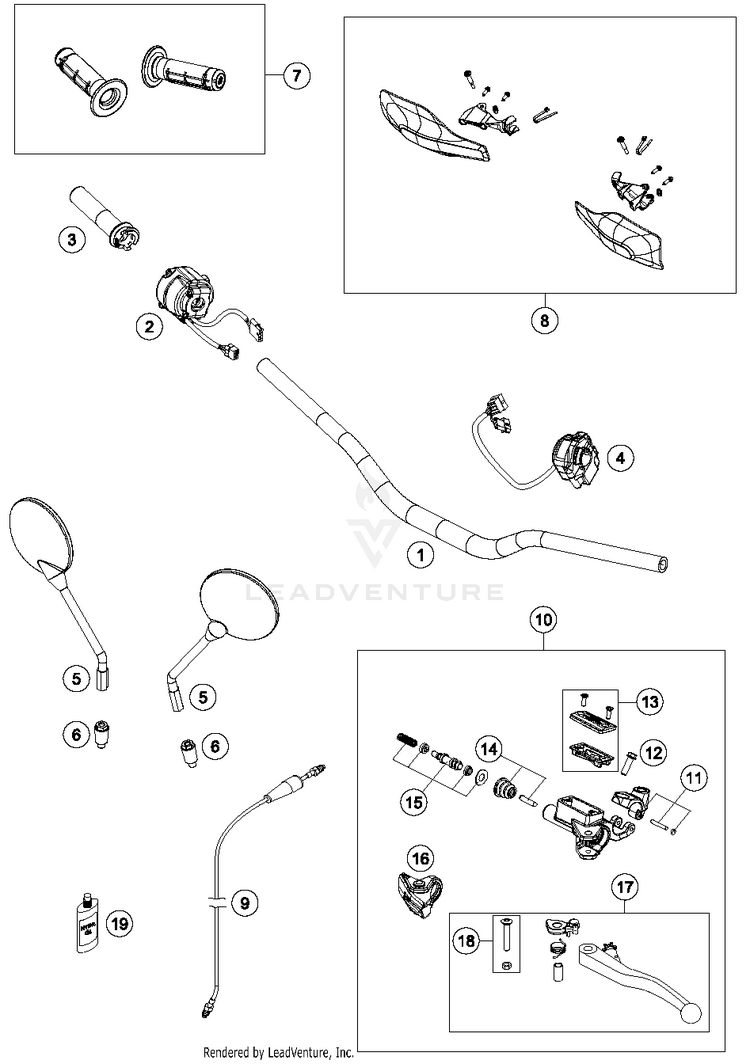

Handlebar, Controls

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17800200100017HANDLEBAR D=28MM$204.04$173.439 In-Stock
276011073100START-STOP/E-GAS$408.64$347.34Usually ships in 7-10 business days
327002010000THROTTLE GRIP CLOSED$36.95$31.416 In-Stock
476511070100

(replaces part #
76511070000)

Handlebar switch left$129.46$110.0410+ In-Stock
558412040100mirror, left/right | 2001$77.21$65.637 In-Stock
658412040050SUPPORT FOR MIRROR LC4 '98 | '98$23.75$20.1910+ In-Stock
780302021000GRIP SET BLACK/WHITE$26.72$22.7110+ In-Stock
82700207900028HANDGUARD CPL. LE.+RI. WHITE$61.92$52.634 In-Stock
954732063100CLUTCH PIPE 250/300 2003 | 2003$119.56$101.6310+ In-Stock
1027002030044MASTER CYLINDER D=11 MM$596.63$507.14Usually ships in 7-10 business days
1176513005000CLAMP, CYL. PIN, O-RING$81.94$69.6510+ In-Stock
120025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
1325002033000COVER HYDR. CLUTCH DOT CPL.$39.15$33.2810+ In-Stock
1476502046000PUSH ROD CPL. 13$37.39$31.7810+ In-Stock
1527002032000REP. KIT PISTON DOT 11MM$148.05$125.849 In-Stock
1676502037000PROTECT.CAP FOR LEVER PERCH 13$43.22$36.7410+ In-Stock
1727002031000CLUTCH LEVER CPL.$102.29$86.9510+ In-Stock
1850302038200LEVER SCREW SHORT CPL. 09$26.94$22.9010+ In-Stock
1900062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
