2017 Husqvarna 701 ENDURO Shock Absorber Disassembled OEM Parts Diagram

Submodel 701 ENDURO CHASSIS- 2017

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

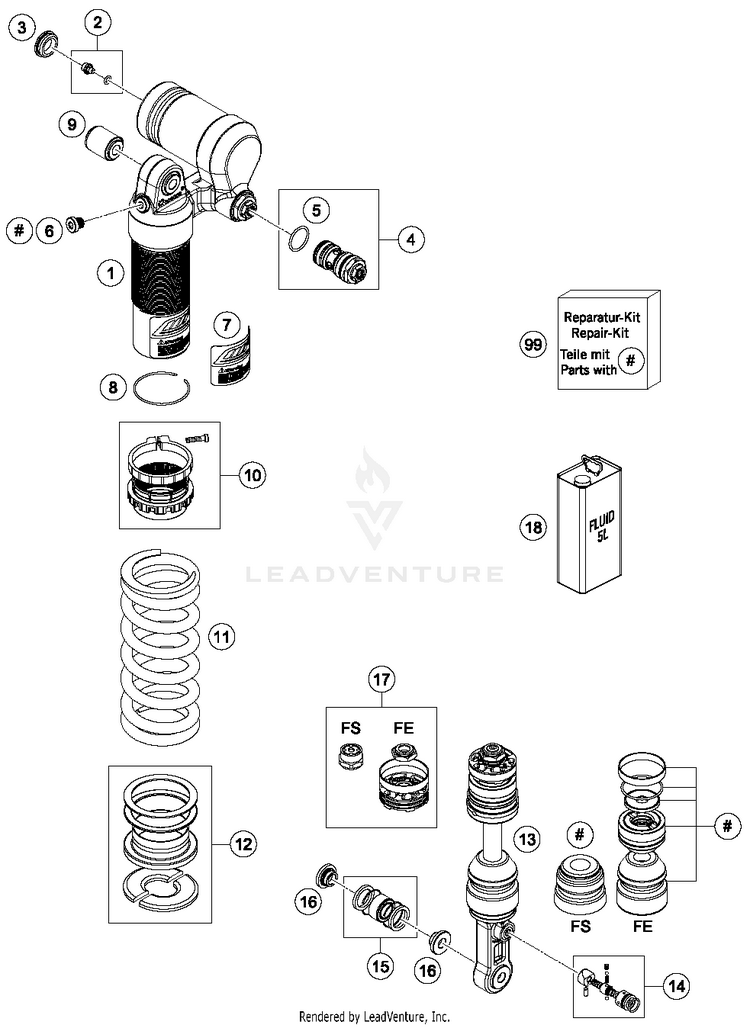

Shock Absorber Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146180776S2MONOSHOCK UPPER PART$857.11$728.54Usually ships in 7-10 business days
236120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
346811208Rubber cap do not open 22x5,5 NBR$3.62$3.0810+ In-Stock
446180533S1Compression cpl.$478.05$406.34Usually ships in 7-10 business days
546180811O-ring 22x2 Viton70$1.20$1.08Usually ships in 7-10 business days
650180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
752000149

(replaces part #
52000087)

Sticker WP warning India 35x60$11.76$10.00Usually ships in 7-10 business days
846810010Round-wire snap ring 49x1,8$3.62$3.0810+ In-Stock
914460161Silentblock 10,05x25x32$18.03$15.33Usually ships in 7-10 business days
1046181013SSpring retainer M55x2x71x35 plastic cpl.$51.69$43.94Not Shipping
1191010338SSPRING 225MM 69 N/MM$164.99$140.24Usually ships in 7-10 business days
1214460024SSPRING PLATE SET$42.56$36.18Usually ships in 7-10 business days
1346180654S17MONOSHOCK LOWER PART CPL.$567.97$482.77Usually ships in 7-10 business days
1446180522S1TAP ADJ. REBOUND$58.95$50.11Usually ships in 7-10 business days
15R12012T

(replaces part #
R12012)

Ball joint bearing kit top 12mm$42.01$35.7110+ In-Stock
1646180010Distance bush 10x15/18/24,5x10,5$7.95$6.7610+ In-Stock
17R12030PISTON KIT FE/FS 701$153.79$130.72Usually ships in 7-10 business days
1850180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
99R12031SERVICEKIT FE / FS 701 | As Required$154.76$131.55Usually ships in 7-10 business days
