2017 Husqvarna 701 ENDURO Fuel Pump OEM Parts Diagram

Submodel 701 ENDURO CHASSIS- 2017

Shop Aftermarket Parts

TO VIEW HUSQVARNA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fuel Pump

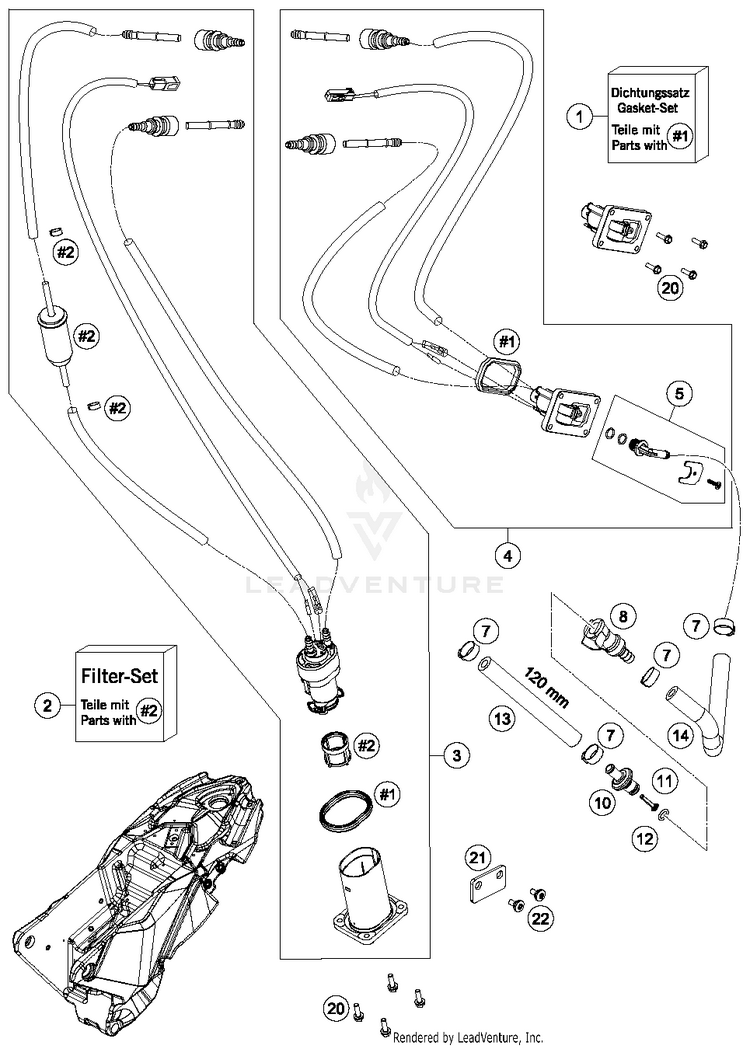

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175007089000SEALINGS KIT$96.90$82.369 In-Stock
281207090200

(replaces part #
81207090000)

Fuel pump filter kit$89.75$76.2910+ In-Stock
375007088511

(replaces part #
75007088211)

Fuel pump$689.36$585.969 In-Stock
475007088012PRESSURE REGULATOR CPL. 07$303.37$257.861 In-Stock
575007092000HYDRAULIC CONNECTOR CPL.$66.87$56.8410+ In-Stock
700050157706VARIABLE ONE-EAR CLAMP 15,7MM$6.15$5.2310+ In-Stock
85850701050030CLUTCH CPC BLACK 05$65.77$55.9010+ In-Stock
1077707010000CONNECTOR FUEL PUMP$17.81$15.1410+ In-Stock
1178141013190FUEL FILTER$5.99$5.4610+ In-Stock
1258507012000O-RING VITON F. PLUG CPC 05$4.99$4.2410+ In-Stock
1360007316120FUEL HOSE 7,5X3,5 L=120$6.48$5.83Usually ships in 7-10 business days
1427007016050FUEL HOSE THROTTLE VALVE$41.02$34.87Usually ships in 7-10 business days
200025050206HH collar screw M5x20 TX30 | TX30$2.99$2.5410+ In-Stock
2127008047000SIDE PANEL BRACKET$9.34$8.41Usually ships in 7-10 business days
2269008021160special screw M5x12$4.99$4.2410+ In-Stock
