Brake Caliper Front

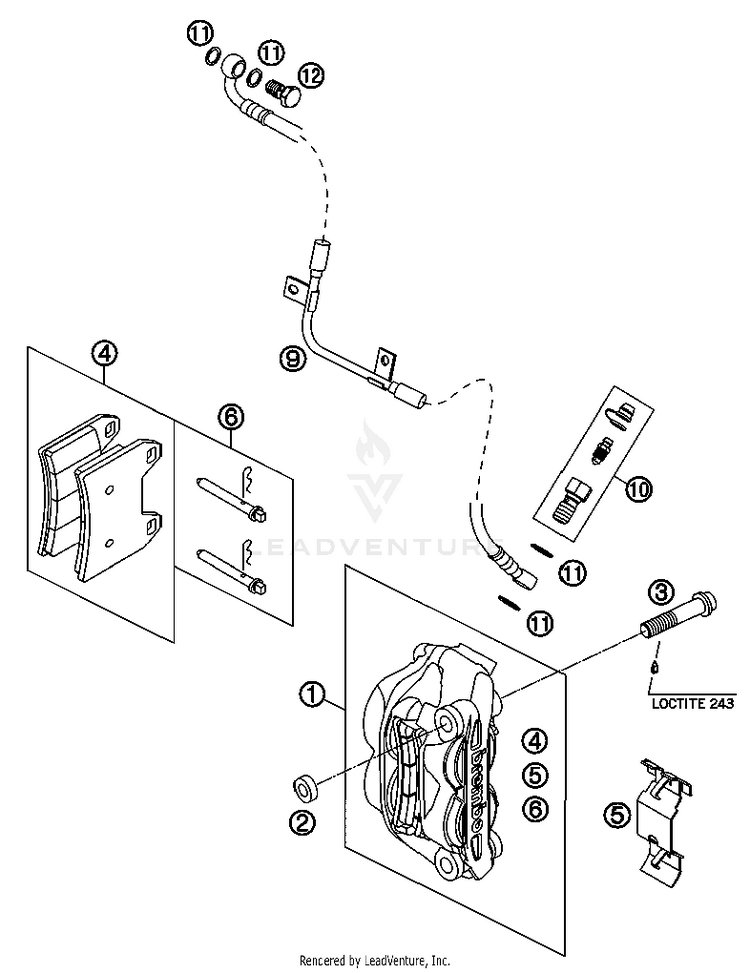

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175013015000BRAKE CALIPER FRONT | 07-$215.00Usually ships in 7-10 business days
26111302200001SPACER BUSH 10,1X20X7,5 07 | 07$4.99$4.248 In-Stock
30035100659AH-COLLAR SCREW M10X1,25X65$6.15$5.238 In-Stock
475013030000BRAKE PAD FR. HAWK 7342-49 HH$100.09$85.08Usually ships in 7-10 business days
558713018000RETAINING SPRING BREMBO '99 | '99$16.16$13.745 In-Stock
658713017000BOLT WHITH CLIP '99 | '99$21.66$18.418 In-Stock
975013012000BRAKE HOSE FRONT CPL. | 07$0.00$0.00Not Shipping
1062513020000BLEEDER SCREW CPL. 05 | 05$32.33$27.4810+ In-Stock
1142013226000CU-SEAL RING DIN7603-10X16X1$2.99$2.5410+ In-Stock
1254813020100banjo bolt M10x1x19 black$11.65$9.9010+ In-Stock
