2007 KTM 690 SMC Front Wheel OEM Parts Diagram

Submodel 690 Supermoto Orange Chassis - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

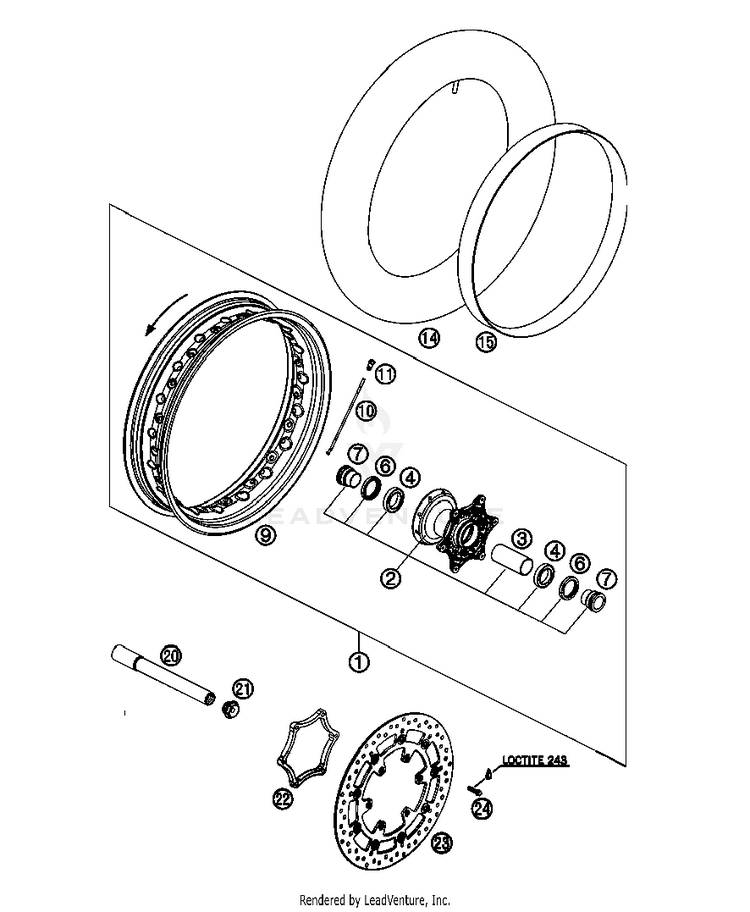

Front Wheel

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17500900104430FRONT WHEEL CPL. 3,5X17'' 07 | 07$819.51$696.58Usually ships in 7-10 business days
27500901004491

(replaces part #
75009010044)

FRONT WHEEL HUB CPL. | 07$366.29$311.35Usually ships in 7-10 business days
354809011000BEA.SPACERTUBE 35X2 L=79,4 03 | 03$30.24$25.7010+ In-Stock
40625069068GR.BALL BEAR.6906 DDU2CG23S6NM$40.80$34.6810+ In-Stock
60760354771SHAFT SEAL RING 35X47X7 TC$10.22$8.6910+ In-Stock
775009012000SPACER BUSHING FRONT WHEEL 07 | 07$32.44$27.574 In-Stock
97500907000030RIM FRONT 3,5X17'' BLACK 07 | 07$479.81$407.84Usually ships in 7-10 business days
1075009073172SPOKE M4,5X172-15G 17'' INOX$3.14$2.83Usually ships in 7-10 business days
1181210072200

(replaces part #
50309072000)

Spoke nipple, Quadrax M4,5$2.99$2.5410+ In-Stock
1458309075000HOSE 3,5X17"$0.00$0.00Not Shipping
1558309073000rim tape 17"$17.70$15.04Usually ships in 7-10 business days
2075009081100

(replaces part #
75009081000)

Wheel spindle, front, D=26ámm | 07$95.03$80.78Usually ships in 7-10 business days
2154809082200

(replaces part #
54809082000)

Axle bolt M24x1.5 SW=27 | 03$11.54$9.8110+ In-Stock
227500906100033

(replaces part #
75009061000)

Brake discs adapter 10.1 mm | 07$153.33$130.33Usually ships in 7-10 business days
2375009060000BRAKE DISC FRONT 320MM 07 | 07$301.61$256.37Usually ships in 7-10 business days
2459009062026

(replaces part #
59009062023)

SPECIAL SCREW M6X26 SW=8 10.9 | 10.9$2.99$2.5410+ In-Stock
