2007 KTM 690 SMC Monoshock OEM Parts Diagram

Submodel 690 Supermoto Orange Chassis - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Monoshock

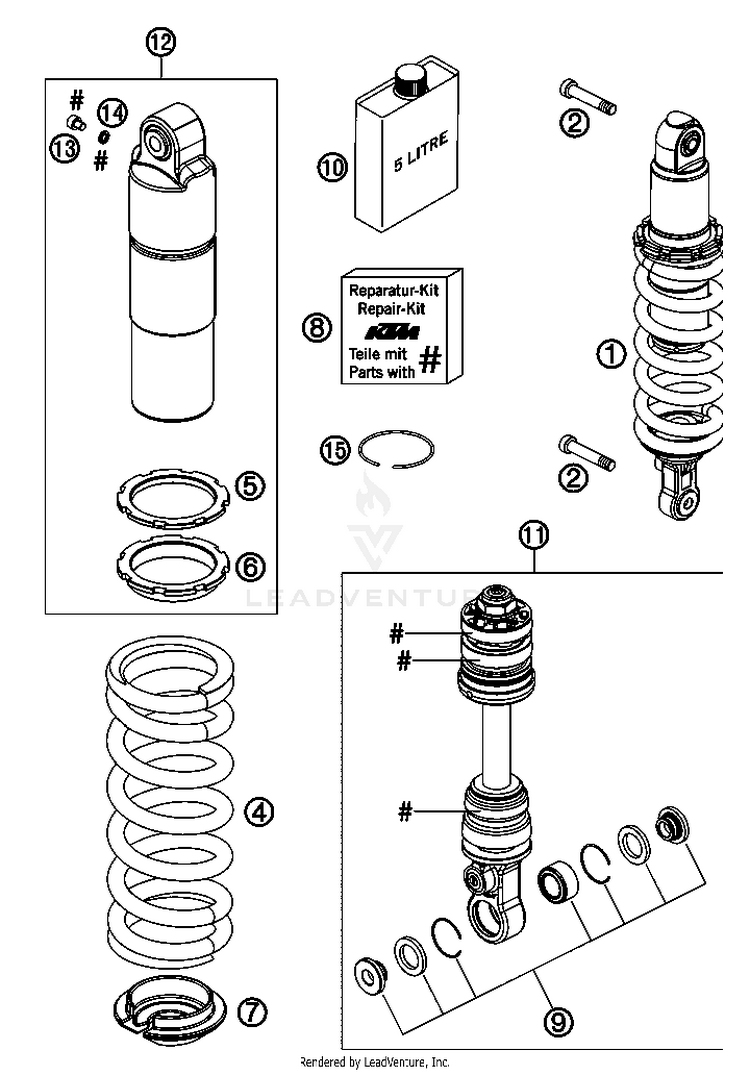

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115189C07MONOSHOCK SM | 07$0.00$0.00Not Shipping
275004016000SCREW M 10 L=53MM 07 | 07$4.99$4.49Usually ships in 7-10 business days
491110001SSPRING 65-230 D=11,0 | 61$0.00$0.00Not Shipping
546180445COUNTERNUT$31.49$26.77Usually ships in 7-10 business days
646180444ADJUSTING NUT$77.29$65.70Usually ships in 7-10 business days
746181299

(replaces part #
46180396)

Spring retainer 28x73x15 black$72.26$61.42Usually ships in 7-10 business days
8R15005T

(replaces part #
R15005)

REPAIR KIT GASKET 07 | 07$98.11$83.39Usually ships in 7-10 business days
9R15006REPAIR KIT BEARINGS 07 | 07$121.26$103.0710+ In-Stock
1050180751S1

(replaces part #
50180342S1)

SHOCK ABSORBER FLUID 5 LT | '03$175.99$149.596 In-Stock
1146180520S1MONOSHOCK LOWER PART CPL. | 07$0.00$0.00Not Shipping
1246180635SMONOSHOCK TOP | 07$0.00$0.00Not Shipping
1336120785SCREW M5 C.K. RVS$3.29$2.96Usually ships in 7-10 business days
1436120782SEAL D5,21XD8,38X1,22$12.75$10.841 In-Stock
1546810010Round-wire snap ring 49x1,8$3.62$3.0810+ In-Stock
