2007 KTM 690 SMC Front Fork Dissasembled OEM Parts Diagram

Submodel 690 Supermoto Orange Chassis - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

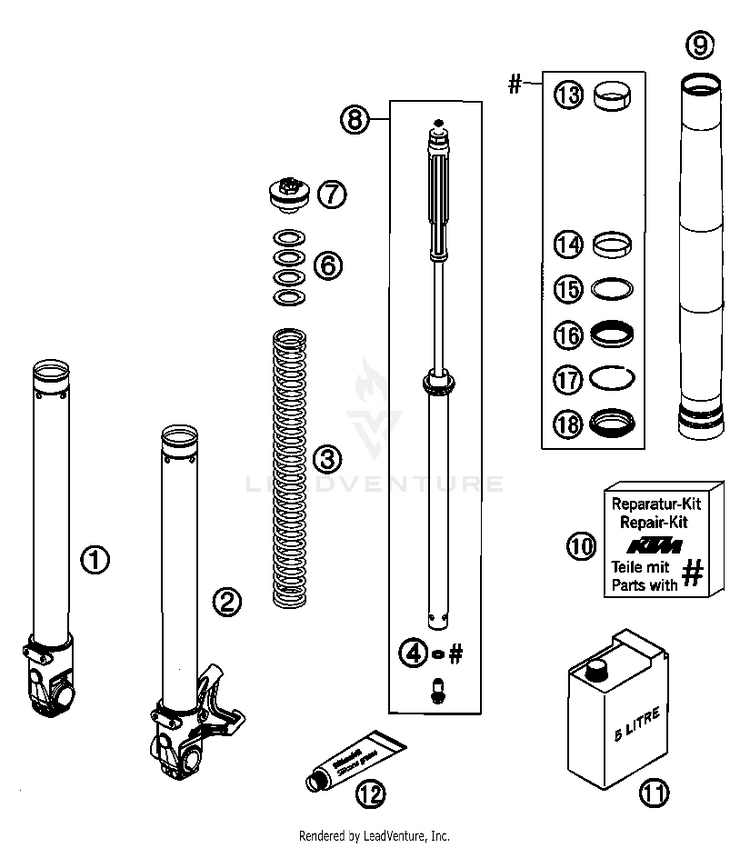

Front Fork Dissasembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
148600585S1AXLE CLAMP R/S CPL. | 07$0.00$0.00Not Shipping
248600584S1AXLE CLAMP L/S CPL. | 07$0.00$0.00Not Shipping
391410057SSPRING 5,2N/MM L=415 D=5,1$187.10$159.04Usually ships in 7-10 business days
446810146Copperwasher 12x16x1,5$2.41$2.17Usually ships in 7-10 business days
648600053Preload bush 26,5x42x1,5$4.83$4.1110+ In-Stock
648600037Preload bush 26,5x42x5$4.83$4.1110+ In-Stock
648600038Preload bush 26,5x42x10$3.62$3.0810+ In-Stock
648600036Preload bush 42x26,5x2,5$2.41$2.0510+ In-Stock
748600558SSCREW CAP M51X1,5 CPL. 07 | 07$87.79$74.62Not Shipping
848600583S1CARTRIDGE CPL. | 07$0.00$0.00Not Shipping
948601099

(replaces part #
48600484)

Fork outer tube 49,13x550 dt54 db60$734.68$624.48Usually ships in 7-10 business days
10RP10045T

(replaces part #
R14011)

Repair kit gasket 48mm (4860 MXMA) | 05$124.95$106.2110+ In-Stock
1148601166S1

(replaces part #
48600401S1)

Fork Fluid Viscosity 4.0 5L | 2005$175.99$149.5910+ In-Stock
12T14034

(replaces part #
T511)

Fuchs grease IPR (250g)$40.69$34.5910+ In-Stock
1348601008

(replaces part #
48600428)

Guide bushing 47x49x20$14.18$12.0510+ In-Stock
1448601009

(replaces part #
48600429)

Guide bushing 48x52x12$14.18$12.0510+ In-Stock
1548600013Supportwasher 50x57,6x1,5$3.62$3.0810+ In-Stock
16S604800001000C1

(replaces part #
48600347)

Shaft seal SKF 48x58x11,4 black | 03$16.05$13.6410+ In-Stock
1748600070Snap ring SB58x1,5 acc drawing$2.41$2.0510+ In-Stock
18S604800000000C1

(replaces part #
48600400)

Dirtscarper SKF 48mm black$15.06$12.8010+ In-Stock
